20kVA/50kV Power Frequency AC Withstand Test System

The 20kVA/50kV Power Frequency AC Withstand Test System is developed for routine insulation verification of electrical equipment under power-frequency AC voltage. With a 50kV AC output and 20kVA rated capacity, the system provides a practical testing solution for manufacturers and laboratories performing dielectric withstand tests on medium-voltage electrical products.

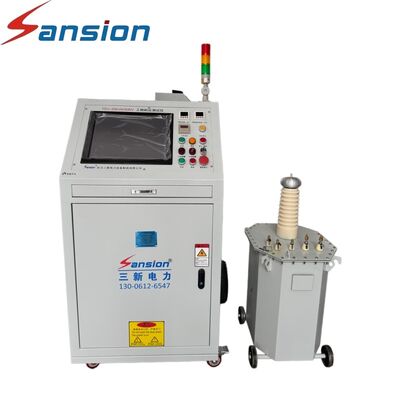

The system is configured with an Operation Console and an Oil Immersed Test Transformer. The transformer generates the required high-voltage AC output through reliable oil insulation and heat dissipation, while the control unit enables operators to regulate and monitor the testing process. It is suitable for production inspection, quality control, and maintenance testing of electrical equipment.

Product Parameters

Product Advantages

• 50kV AC Test Output — Suitable for insulation withstand testing of medium-voltage electrical equipment.
• 20kVA Capacity Configuration — Provides sufficient testing capability for applicable electrical loads.
• Oil Immersed Transformer Design — Ensures reliable insulation performance and effective heat dissipation.
• Simple Operation Structure — Practical control method for routine testing procedures.
• Stable High Voltage Output — Supports repeated dielectric withstand testing in industrial environments.
• Flexible Application — Suitable for factory inspection, laboratory testing, and maintenance verification.

Application Scenarios

• Distribution transformer insulation testing
• Medium-voltage switchgear testing
• Cable insulation withstand testing
• Electrical component quality inspection
• Insulator and bushing testing
• Power equipment maintenance testing

Application Note: The suitable model should be selected according to the test voltage, capacity requirement, and characteristics of the tested object.

FAQ

Q1: What is the main purpose of this test system?

A: It is mainly used for power-frequency AC withstand voltage testing to verify the insulation strength of electrical equipment.

Q2: What is the output voltage of this model?

A: The system provides an AC test voltage up to 50kV.

Q3: What type of transformer is included?

A: The system uses an oil immersed high-voltage test transformer.

Q4: Can other voltage ratings be customized?

A: Yes. Different voltage and capacity configurations can be provided according to customer requirements.
