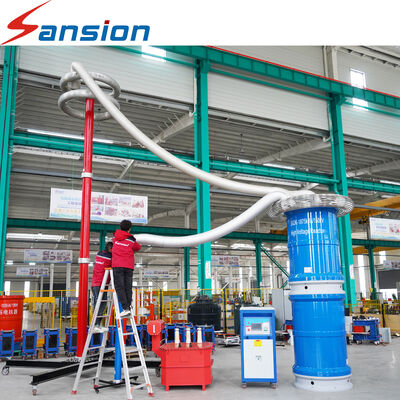

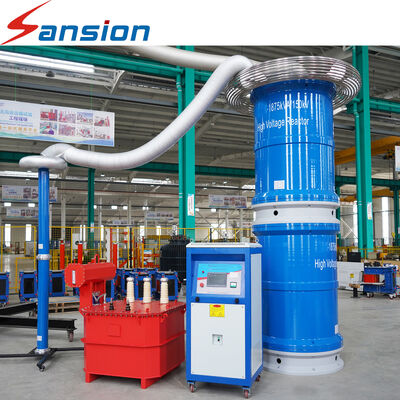

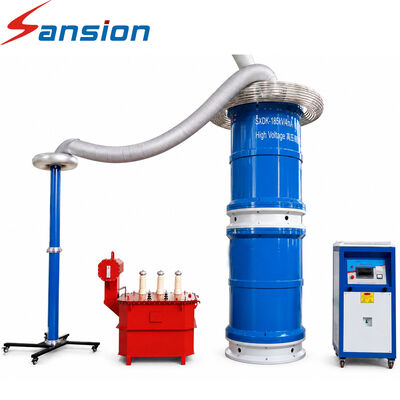

High Voltage AC Resonant Test System Intelligent Automatic Series Resonance Hipot Equipment with Frequency Sweep, Auto Tuning and Data Recording

The High Voltage AC Resonant Test System combines variable frequency control, automatic tuning and intelligent data acquisition into one integrated high-voltage testing solution.

The control system can automatically search for the resonance point, monitor the test voltage and current, and control the test duration according to preset parameters.

This reduces complicated manual adjustments and helps improve testing efficiency.

• Automatic frequency sweep
• Automatic resonance point search
• Automatic voltage boosting
• Automatic voltage reduction
• Test duration setting
• Voltage monitoring
• Current monitoring
• Frequency measurement
• Resonance status monitoring
• Overvoltage protection
• Overcurrent protection
• Flashover protection
• Zero-start protection
• Emergency stop
• Test data storage
• Automatic test report generation

The intelligent control system can display:

• Test voltage
• Test current
• Frequency
• Test time
• Resonance status
• Protection status
• Historical test data

Some industry systems advertise automatic resonance finding and one-click testing workflows, reflecting the increasing importance of automation for field testing.

Q: Can the system automatically find the resonance point?
A: Yes. Automatic frequency sweep and resonance search can be integrated into the control system.

Q: Can test data be saved?
A: Yes. Data storage and report functions can be configured.
