Product Description

100kV Power Frequency AC Withstand Test System

The 100kV Power Frequency AC Withstand Test System is designed to evaluate the insulation strength of electrical equipment by applying a specified AC high voltage at 50Hz or 60Hz. It can be used to identify insulation weaknesses and verify whether electrical products meet their required withstand voltage during production inspection and maintenance testing.

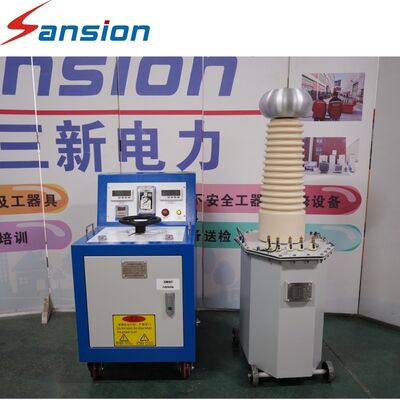

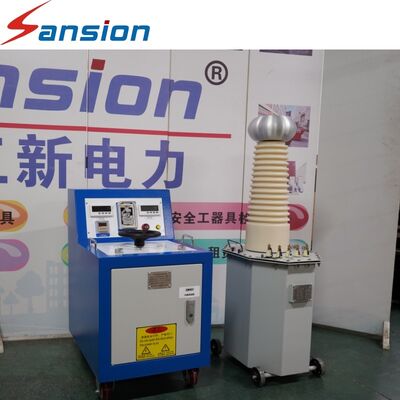

The system consists of a Manual Operation Console and an Oil Immersed Test Transformer. The operator manually regulates the test voltage through the console, while the oil immersed transformer generates the required high-voltage output. With a 10kVA rated capacity and 100kV test voltage, it provides a practical configuration for routine AC dielectric testing.

Product Parameters

Product Advantages

• Designed for power frequency AC withstand testing
• 100kV output supports high-voltage insulation evaluation
• Manual operation provides direct control of voltage adjustment
• Oil immersed transformer provides reliable high-voltage conversion

Application Scenarios

• Electrical equipment insulation testing
• High-voltage component inspection
• Factory dielectric testing
• Electrical testing laboratories

FAQ

Q1: What is the purpose of an AC withstand test?

A: It is used to evaluate whether the insulation of electrical equipment can withstand a specified AC test voltage.

Q2: What is the maximum test voltage of this equipment?

A: The configured AC test voltage is 100kV.

Q3: How is the voltage adjusted?

A: The operator manually adjusts the test voltage through the Manual Operation Console.

Q4: What transformer is included?

A: The system is equipped with an Oil Immersed Test Transformer.
