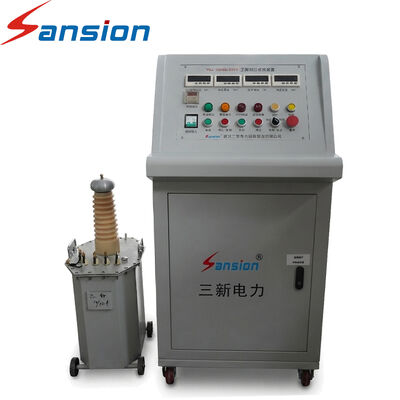

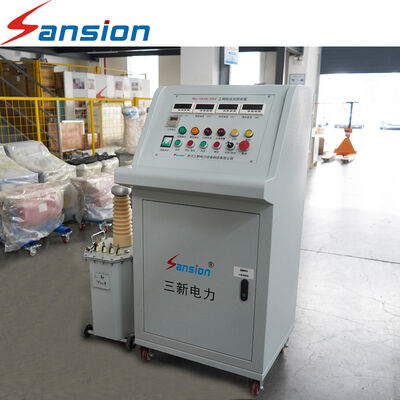

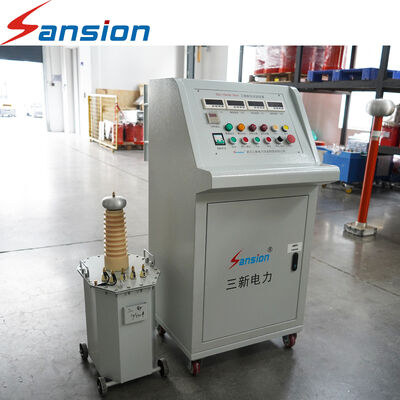

Automatic Power Frequency Voltage Withstand Tester Intelligent AC High Voltage Test System with Digital Control, Protection and Data Recording

The Automatic Power Frequency Voltage Withstand Tester is an intelligent high-voltage testing system designed to improve testing efficiency and operational convenience.

The digital control system can monitor test voltage, current and test duration in real time. Users can preset test procedures and perform controlled voltage boosting.

The system can also include data recording, automatic pass/fail evaluation and test report functions.

• Automatic voltage boosting
• Automatic voltage reduction
• Test duration setting
• Voltage measurement
• Current measurement
• Leakage current monitoring
• Overcurrent protection
• Overvoltage protection
• Flashover protection
• Zero-start protection
• Emergency stop
• Data storage
• Historical record management
• Automatic test report generation

Simple operation: Software-guided procedures can simplify routine testing.

Data traceability: Important test data can be stored and reviewed.

Safety: Multiple protection functions can help protect the equipment and test process.

Repeatability: Predefined test procedures help standardize repeated testing.

Q: Can the system store test records?
A: Yes. Data storage and historical test record functions can be included.

Q: Can the equipment automatically judge whether a test passes?
A: Pass/fail logic can be configured according to predefined testing limits and procedures.

Q: Can reports be exported?
A: Report and data export functions can be configured according to customer requirements.
