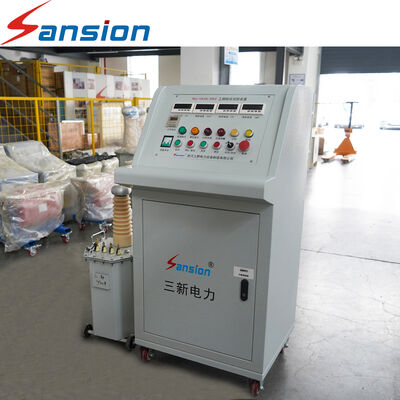

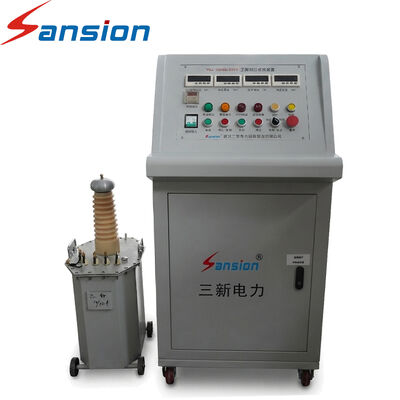

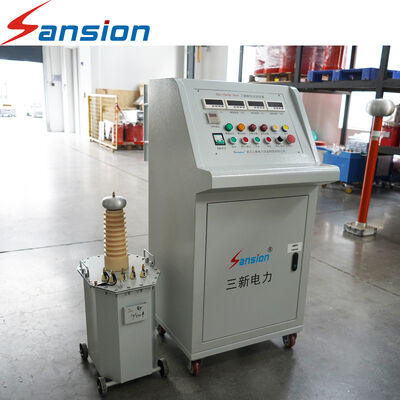

High Voltage Test Transformer and Power Frequency Withstand Voltage Test System AC Hipot Testing Equipment for Factory and On Site Electrical Testing

The High Voltage Test Transformer and Power Frequency Withstand Voltage Test System is a traditional and widely used solution for AC insulation testing.

The system generally consists of a voltage regulator, control unit, high-voltage test transformer, measuring device and protection system.

It is suitable for customers looking for a reliable and cost-effective solution for conventional AC withstand voltage testing.

Typical Testing Functions

• Power frequency AC withstand test
• High-voltage insulation test
• Transformer insulation test
• Cable hipot test
• Switchgear withstand test
• Motor insulation test
• Electrical equipment factory test
• On-site commissioning test

Main Features

• Compact system design
• Stable high-voltage output
• Easy operation
• Flexible configuration
• Suitable for laboratory use
• Suitable for on-site testing
• Available in different voltage classes
• Optional digital measurement and automatic control

FAQ

Q: What is included in a complete test system?
A: Typical components may include a control console, voltage regulator, high-voltage test transformer, voltage divider and protection devices.

Q: Can the equipment be moved to different testing locations?
A: Portable or modular designs can be selected depending on the required capacity and field testing needs.
