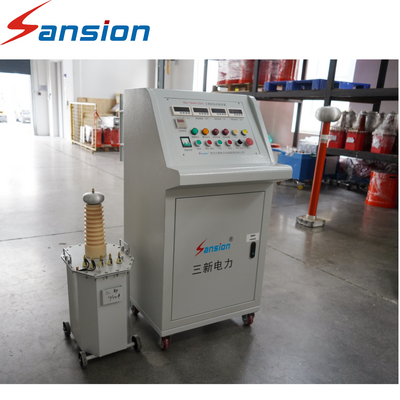

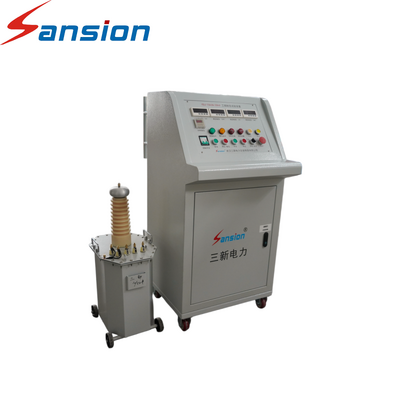

20 kV 10 kVA Power Frequency AC Hipot Test System with Motorized Electric Control Console and Oil Type High Voltage Test Transformer for Factory Testing and Electrical Insulation Verification

Description
Capacity: 10 KVA Rated Voltage: 20 KV AC
Input Power: 220V / 380V Output Voltage: 20kV AC
Output Current: 500mA Frequency: 50Hz / 60Hz
Cooling Method: Oil Insulation Cooling Transformer Structure: Oil Immersed
Highlight:

20 kV AC Hipot Test System

,

10 kVA oil type high voltage transformer

,

motorized electric control console

Product Description

The Power Frequency AC Withstand Test System provides a practical solution for AC dielectric testing of low and medium voltage electrical equipment. It is mainly used to check whether insulation systems can withstand specified AC voltage levels during production testing, commissioning and preventive inspection.

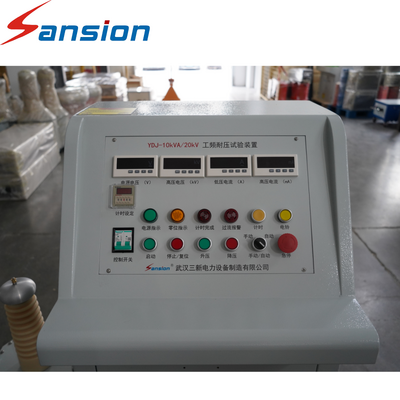

This system integrates an Electric Control Console with an Oil Immersed High Voltage Test Transformer. The electric operating unit allows smooth voltage adjustment and clear testing control, while the oil type transformer delivers reliable high voltage output for continuous testing applications.

Product Parameters
Model Capacity (kVA) Rated Voltage (kV) Operation System Transformer Structure
YDJ(Z)-10/20 10 20 AC Electric Control Console Oil Immersed
Item Specification
Input Power 220V / 380V
Output Voltage 20kV AC
Output Current 500mA
Frequency 50Hz / 60Hz
Cooling Method Oil Insulation Cooling
Product Advantages
  • Smooth electric voltage regulation reduces operation difficulty
  • Oil insulated transformer design provides reliable insulation protection
  • Compact structure suitable for indoor testing environments
  • Designed according to professional high voltage testing requirements
Application Scenarios
  • Electrical component manufacturers
  • Cable and motor testing
  • Laboratory dielectric testing
  • Equipment commissioning projects
FAQ

Q1: Is this system suitable for production line testing?

A: Yes, it is suitable for routine insulation withstand tests during electrical equipment production.

Q2: What type of transformer is used?

A: The system uses an oil immersed high voltage test transformer.

Q3: Is automatic control available?

A: Yes, intelligent and computer control versions can be customized.

Q4: What is the working frequency?

A: The system operates at standard power frequency of 50Hz or 60Hz.
