10kVA 20kV Power Frequency AC Withstand Test System with Electric Control Console Oil Immersed Test Transformer for Electrical Equipment Insulation Testing Laboratory and Factory Quality Testing

Large Image : 10kVA 20kV Power Frequency AC Withstand Test System with Electric Control Console Oil Immersed Test Transformer for Electrical Equipment Insulation Testing Laboratory and Factory Quality Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	YDJ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

10kVA 20kV Power Frequency AC Withstand Test System with Electric Control Console Oil Immersed Test Transformer for Electrical Equipment Insulation Testing Laboratory and Factory Quality Testing

Description

Capacity:	10kVA	HV Voltage:	20kV
Input Voltage:	AC 220V / 380V	Frequency:	50Hz / 60Hz
HV Output Current:	500mA	Control Mode:	Electric Operation
Transformer Type:	Oil Immersed Type	Control Console:	Electric Control Console
Highlight:	10kVA 20kV AC withstand test system , oil immersed test transformer , electrical equipment insulation testing

Product Description

The 10kVA 20kV Power Frequency AC Withstand Test System is designed for electrical manufacturers, laboratories and testing organizations requiring reliable insulation performance verification. It applies controlled AC high voltage to evaluate the dielectric strength of transformers, switchgear, cables, motors and other electrical components.

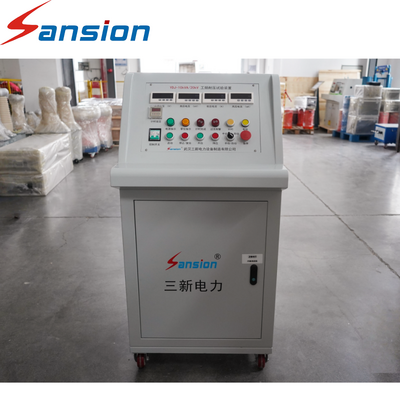

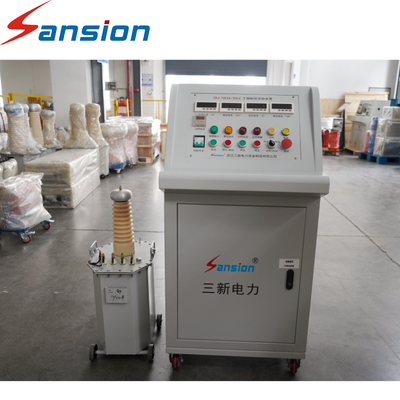

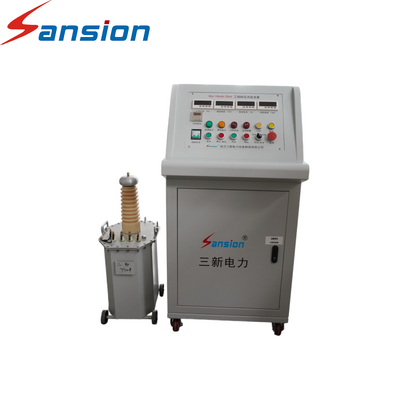

The system consists of an Electric Control Console and an Oil Immersed Test Transformer. The electric control console provides convenient voltage regulation, measurement and protection functions, while the oil immersed transformer ensures stable high voltage output with excellent heat dissipation and long service service life.

Product Parameters

Model	Capacity (kVA)	HV Voltage (kV)	Control Console	Test Transformer
YDJ(Z)-10/20	10	20	Electric Control Console	Oil Immersed Test Transformer

Item	Specification
Input Voltage	AC 220V / 380V
Frequency	50Hz / 60Hz
HV Output Current	500mA
Control Mode	Electric Operation
Transformer Type	Oil Immersed Type

Product Advantages

Electric control operation improves testing efficiency and convenience
Oil immersed transformer provides stable output and excellent insulation performance
Suitable for routine AC withstand voltage testing
Integrated protection system ensures safe operation during testing

Application Scenarios

Electrical equipment manufacturing factories
High voltage testing laboratories
Transformer and switchgear inspection
Power equipment maintenance centers

FAQ

Q1: What components are included in this system?

A: The system includes an electric control console and an oil immersed high voltage test transformer.

Q2: Why choose an oil immersed test transformer?

A: The oil immersed structure provides good heat dissipation, stable performance and long-term operation capability.

Q3: Can the control mode be customized?

A: Yes, manual, electric and intelligent control solutions are available.

Q4: What equipment can be tested?

A: It can be used for transformers, cables, switchgear, motors and other insulation testing applications.

10kVA 20kV Power Frequency AC Withstand Test System with Electric Control Console Oil Immersed Test Transformer for Electrical Equipment Insulation Testing Laboratory and Factory Quality Testing
