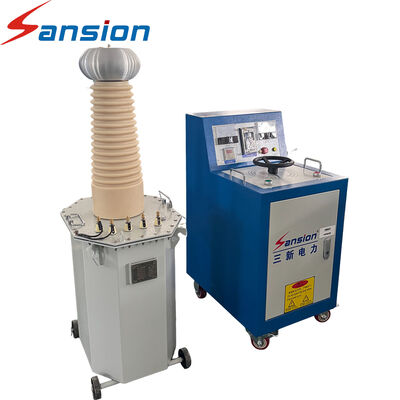

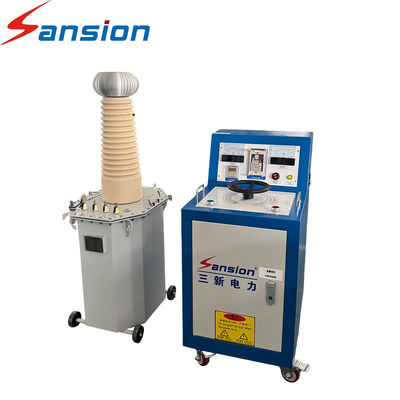

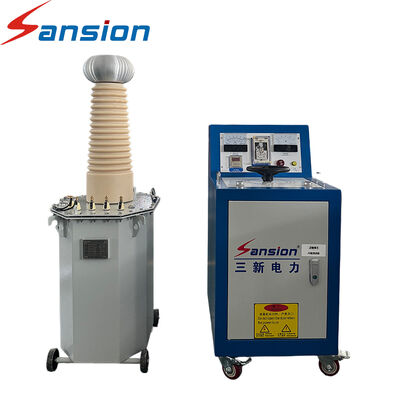

AC Dielectric Test System Power Frequency Withstand Voltage Test Set for Electrical Equipment Testing

The Power-Frequency Withstand Voltage Test Device is a high-voltage insulation testing system for power utilities, industrial enterprises, research institutes and other applications. It consists of two main units: the SXTC control unit and YD test transformer.

• SXTC Control Unit: Compact, rugged and easy to operate, with reliable performance and convenient maintenance. Suitable for both laboratory and on-site testing.
• YD Test Transformer: Designed in accordance with relevant industry standards for AC power-frequency and DC high-voltage insulation tests on electrical equipment, components and insulating materials.
• Flexible Configuration: The control and boost units can be combined according to different voltage levels, capacities and testing requirements.

• Flexible System Configuration: Multiple specifications and strong compatibility allow the control and high-voltage units to be matched for different test requirements.
• Robust & Practical Design: Optimized mechanical structure provides reliable operation and long-term durability.
• AC/DC Dual-Mode Testing: Supports both AC and DC withstand tests in a compact, transport-friendly design.
• Scalable Voltage Output: Operates as a standalone unit or connects multiple transformers in series for higher test voltages.
• Versatile Control Modes: Available with manual, electric, automatic or industrial-PC control according to application needs.
• Convenient Data Management: Optional printer, USB and PC communication, with Chinese-English bilingual operation.
• Adaptable Insulation Configurations: Available in oil-filled, epoxy dry-type, SF₆-insulated and corona-free designs for different environments.
