AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test

AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test
AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test
AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test

Large Image :  AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/SGS/EMS/ISO 9001
Model Number: YDJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood Case
Delivery Time: 30 Working Days
Payment Terms: T/T,L/C
Contact Now Chat Now

AC Dielectric Test System AC Hipot Tester for Laboratory And On‑Site High Voltage Insulation Test

Description
Power Rating: 0.5-500 KVA Hi-pot Output: 50-500kV (Single Unit); 200-800kV (Cascade Assembled)
Insulation Media: SF6 Gas Insulation, Oil Immersed, Epoxy Cast Resin Mains Input: 220V / 380V AC Power Supply
Operating Modes: Manual Operation, Motorized Actuation, Auto-run, IPC Based Control Voltage Range: 50–500 KV
Highlight:

AC Hipot Tester for laboratory insulation test

,

AC Dielectric Test System for high voltage

,

On-site high voltage insulation tester

Product Description

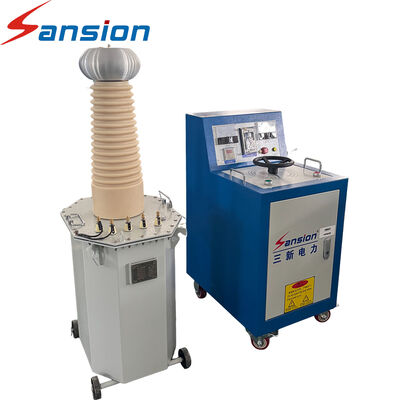

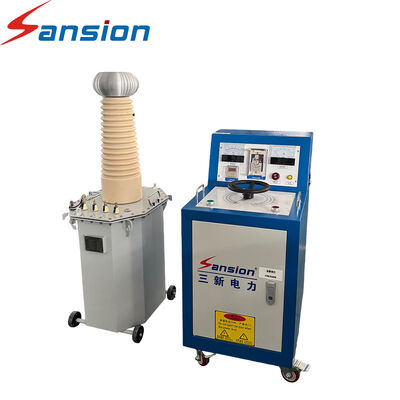

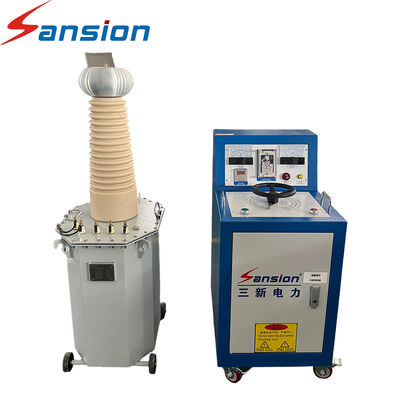

The power-frequency withstand voltage test system is designed for high-voltage insulation verification across power utilities, industrial and mining facilities, electrical manufacturers, and research laboratories. The complete system integrates two main sections: a control unit for test operation and monitoring, and a high-voltage transformer unit for voltage generation.

Features
  • Flexible Configuration & Broad Compatibility
  • Robust Structure & Reliable Performance
  • AC/DC Dual-Purpose Testing
  • Scalable High-Voltage Output
  • Versatile Control Modes
  • Convenient Data Management & Communication
  • Multiple Insulation Configurations
Application

Power Utilities & Grid Infrastructure — Suitable for power supply companies, substations, transmission and distribution facilities, and power generation plants.​
• Industrial & Heavy-Duty Facilities — Applicable to metallurgy, mining, large-scale industrial enterprises, and other facilities requiring high-voltage electrical inspection and maintenance.​
• Railway & Transportation Systems — Designed for electrical testing and insulation verification in railway power supply and related electrical systems.​
• Research & Testing Institutions — Suitable for electrical research institutes, engineering laboratories, inspection centers, and independent third-party testing organizations.

FAQ

Q1. What types of test transformers are available?

A: The YD series includes different transformer structures according to application requirements, including ultra-lightweight, dry-type, oil-immersed, gas-type, insulated-cylinder and corona-free test transformers.

Q2. What is the voltage and capacity range of the test transformers?

A: The standard configuration covers different voltage and capacity requirements. Depending on the model, a single transformer can typically provide approximately 50–500 kV with a capacity range of 2–500 kVA. Higher test voltages can be achieved through series connection of multiple test transformers.
