Industrial Electric Motor Comprehensive Test System Multi-functional Testing System for AC, DC And Variable Frequency Motor Factory & Maintenance Testing

Product Introduction

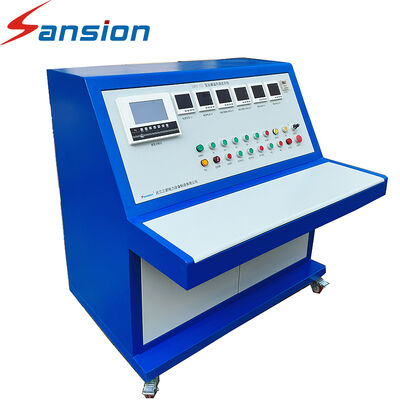

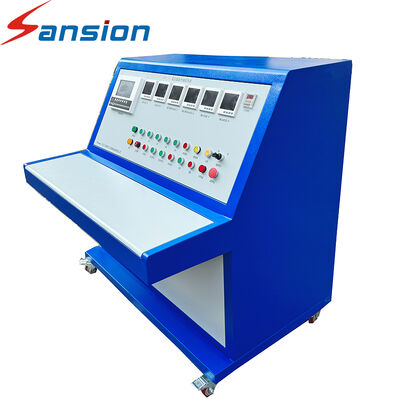

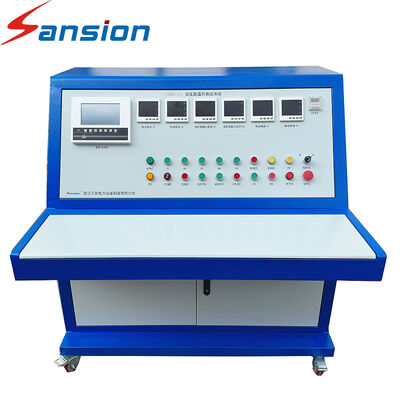

The Motor Comprehensive Test System is an integrated testing platform developed for evaluating the electrical and performance characteristics of AC, DC, and variable-frequency motors. Covering motor capacities from 0 to 10,000 kW and rated voltages up to 10 kV, it provides a flexible solution for factory acceptance, commissioning, preventive maintenance, troubleshooting, and repair testing. With comprehensive test functions in one system, it helps improve testing efficiency, consistency, and equipment reliability.

Features

• Accurate & Reliable Data Acquisition

  The system provides synchronized measurement of three-phase current and other key electrical parameters, allowing operators to clearly evaluate motor operating conditions and current variations. High-precision data acquisition ensures reliable results for standardized motor testing and quality inspection.​

• Automated Testing for Higher Efficiency

  Predefined testing procedures minimize manual intervention and reduce the risk of operator-related errors. The automated workflow simplifies daily operation, shortens testing time, and is particularly well suited for high-volume motor production and factory acceptance testing.​

• Flexible Architecture with Smart Data Management

  A modular design allows different test functions to operate independently while making future upgrades and system expansion more convenient. Test results are automatically stored in digital format, with quick report generation, export, and printing available for efficient and traceable motor test management.

Test Items

• Inter-Turn Withstand Test — Verifies winding turn-to-turn insulation performance of HV and LV motors.​
• No-Load Performance Test — Measures no-load current and no-load losses for motor performance evaluation.​
• Winding Cold Resistance Test — Accurately determines the cold resistance of HV/LV motor windings.​
• Voltage Measurement — Supports three-phase and single-phase voltage measurement with average value calculation.​
• Current Measurement — Provides three-phase/single-phase current measurement and average current analysis.​
• Insulation Resistance Test — Checks the insulation condition of motor windings and electrical circuits.​
• Power Frequency Withstand Test — Performs AC withstand voltage testing for HV and LV motor insulation.​
• Temperature Measurement — Monitors motor temperature during different test conditions.​
• Vibration Monitoring — Measures motor vibration to assess mechanical operating condition and stability.​
• Temperature Rise Test — Evaluates the motor's temperature increase during continuous operation.​
• Load Performance Test — Assesses motor performance and operating characteristics under specified load conditions.​
• Locked-Rotor Test — Evaluates motor current, torque, and other electrical characteristics under locked-rotor conditions.​
• Torque & Speed Measurement — Captures real-time torque and rotational speed for mechanical performance analysis.
