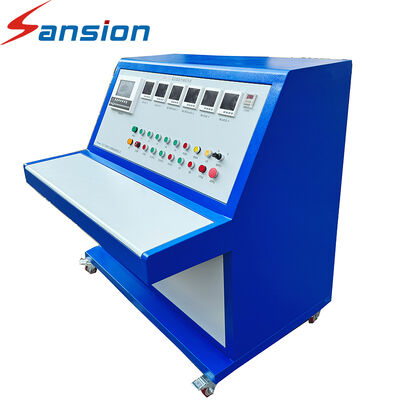

Automatic Electric Motor Comprehensive Performance Test System HV/LV Motor Inter-turn Withstand Voltage, Temperature Rise And Load Integrated Test Equipment

The Motor Comprehensive Test System is a versatile solution for comprehensive performance testing of AC motors, DC motors, and variable-frequency motors. It is designed for motors ranging from 0 to 10,000 kW and voltage levels up to 10 kV, supporting complete testing during factory inspection, commissioning, maintenance, and repair.

The test bench integrates all essential hardware and software into a unified testing platform, including an industrial control computer, test power supply, control unit, sensor and signal conditioning modules, and high-speed data acquisition hardware.

• Precise Measurement The system enables synchronous and accurate monitoring of three-phase current, and captures the real-time impact of current fluctuation on equipment operation. Stable collected data meets national standard accuracy requirements for motor inspection.
• High Degree of Automation Automated test procedures greatly reduce errors caused by manual operation, lower labor intensity for operators and improve overall test efficiency, suitable for mass factory inspection of motors.
• Modular, Intelligent & Informative The equipment supports segmented testing with independent functional modules for easy later function expansion and troubleshooting. All test data is digitally archived, and test reports can be exported and printed in one click to realize information management of the whole motor inspection process.

Applicable for factory type test and post-maintenance re-inspection of AC motors, DC motors and variable frequency motors. Ideal for motor manufacturers, motor maintenance enterprises, third-party power inspection institutions, university research laboratories and other organizations.
