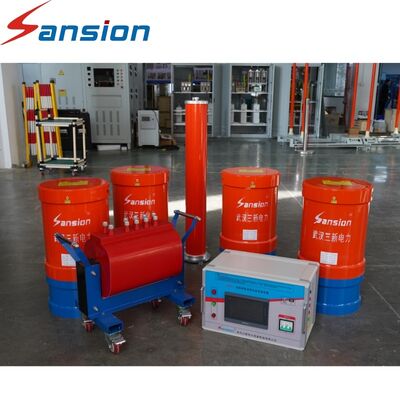

272 kVA 108 kV Variable-Frequency AC Resonant Test System and Machine for Power Transformer Cable Switchgear and Insulation Strength Verification

The SXBP-272kVA 108kV Variable Frequency AC Resonant Test System is developed to provide a reliable AC testing method for electrical equipment requiring insulation strength evaluation. The system combines frequency conversion technology with resonance principles to generate a stable test voltage, allowing operators to conduct high voltage inspections with improved control and efficiency. It is designed for applications where accurate testing results and flexible operation are important.

This AC Resonant Test System is suitable for a wide range of electrical testing tasks, including factory inspection, equipment acceptance, and maintenance verification. It helps users analyze insulation conditions and confirm the reliability of power equipment before energization. The system can be applied to transformers, cables, GIS, switchgear, and other electrical components, providing a professional testing platform for manufacturers, utilities, and technical service organizations.

1. Intelligent Frequency Adjustment

   The system automatically adapts testing conditions through frequency regulation, improving compatibility with different test objects.

2. Improved Testing Efficiency

   The resonant operating method reduces unnecessary energy consumption while maintaining effective high voltage output.

3. Reliable Data Analysis

   Stable test parameters allow engineers to obtain consistent results for insulation condition evaluation.

4. Practical Installation Design

   The modular structure simplifies transportation, setup, and operation in different testing environments.
