272 kVA 108 kV Variable-Frequency AC Resonant Test System and Machine for Transformer Cable GIS and High Voltage Equipment Insulation Withstand Testing

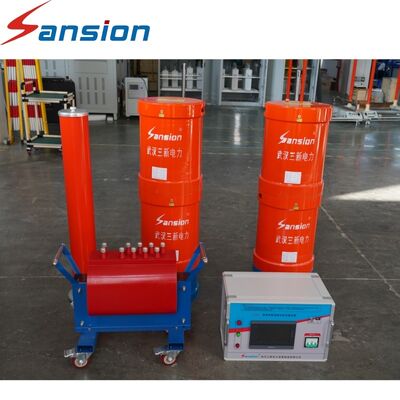

SXBP-272kVA 108kV Variable Frequency AC Resonant Test System

The SXBP-272kVA 108kV Variable Frequency AC Resonant Test System is designed for reliable AC voltage testing of medium and high voltage electrical equipment. By applying variable frequency resonance technology, the system creates a stable testing environment for capacitive loads and helps engineers perform insulation verification with improved efficiency. It is suitable for applications where accurate dielectric assessment and safe test operation are required.

This AC Resonant Test System provides a practical testing solution for transformer manufacturers, power service companies, and electrical laboratories. It is commonly used to evaluate insulation conditions, confirm equipment withstand capability, and support commissioning procedures for transformers, cables, GIS, motors, and switchgear. The integrated control system simplifies operation while providing monitoring functions to ensure reliable testing performance in different working environments.

• Distribution Transformer Inspection

  The system is suitable for transformer production lines and maintenance centers to perform AC withstand testing, helping verify insulation quality and improve equipment reliability.

• Medium Voltage Cable Testing

  For cable manufacturers and installation projects, the equipment provides controlled AC test voltage to evaluate cable insulation conditions and support acceptance procedures.

• Electrical Equipment Commissioning

  The system can be used for testing switchgear, GIS, motors, and other electrical devices during installation and commissioning stages to ensure safe operation.

1. Flexible Test Configuration

   The system can be adjusted according to different test objects, allowing users to handle various insulation testing requirements.

2. Efficient Resonant Technology

   The resonance method improves energy utilization and reduces the demand for high-capacity power supply systems.

3. Accurate Insulation Evaluation

   Stable voltage output helps engineers obtain dependable test data for equipment condition analysis.

4. Advanced Protection Design

   The system includes multiple protection mechanisms to improve safety during high voltage testing operations.
