108kV Variable Frequency AC Resonant Test System for High Voltage Transformer Cable GIS Insulation Withstand and Performance Testing

Large Image : 108kV Variable Frequency AC Resonant Test System for High Voltage Transformer Cable GIS Insulation Withstand and Performance Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

108kV Variable Frequency AC Resonant Test System for High Voltage Transformer Cable GIS Insulation Withstand and Performance Testing

Description

Voltage Level:	108kV	Test Type:	AC Withstand Voltage
Technology:	Variable Frequency Resonance	Application Range:	Transformers, Cables, GIS, Switchgear
Waveform Distortion:	Low	Protection Functions:	Over-voltage, Over-current, Flashover
Testing Efficiency:	High	Design:	Modular Structure
Highlight:	108kV AC resonant test system , variable frequency high voltage test system , GIS insulation withstand testing system

Product Description

108kV Variable Frequency AC Resonant Test System

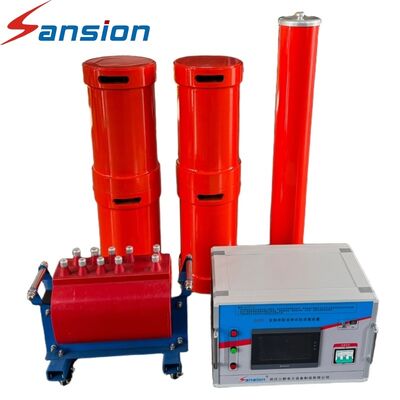

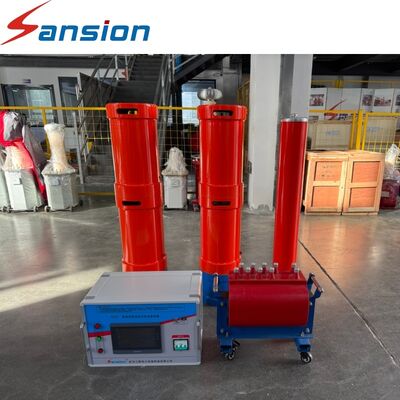

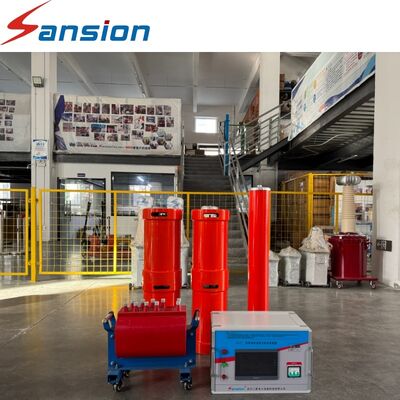

The 108kV Variable Frequency AC Resonant Test System is a professional high voltage testing solution designed for AC withstand voltage tests of medium and high voltage electrical equipment. By adopting variable frequency resonance technology, the system provides stable AC test voltage with optimized energy utilization, allowing engineers to perform reliable insulation verification on equipment with large capacitive characteristics. It is widely used in electrical laboratories, manufacturing plants, substations, and field commissioning projects.

This AC Resonant Test System helps users evaluate insulation conditions, identify potential defects, and improve the safety performance of power equipment before operation. With flexible configuration, accurate control, and multiple protection functions, it can support testing requirements for transformers, cables, GIS, switchgear, motors, and other electrical devices. The system provides an efficient solution for equipment acceptance testing, preventive maintenance, and insulation performance assessment.

Product Applications

Transformer and Electrical Equipment Testing

The 108kV Variable Frequency AC Resonant Test System is suitable for transformer manufacturers and testing organizations to conduct insulation withstand tests on transformers, reactors, and other high voltage components. It helps verify electrical strength and ensure reliable equipment performance.

Power Cable and GIS Commissioning

For high voltage cables and GIS systems, the equipment provides a stable AC test environment for commissioning, acceptance inspection, and maintenance evaluation. It supports engineers in detecting insulation problems before equipment is put into service.

Substation and Field Testing Projects

The compact and flexible design allows the system to be used at substations, power plants, and engineering sites. It provides a practical testing method for various high voltage applications under different working conditions.

Product Advantages

1. Efficient Variable Frequency Control

The system adjusts operating frequency according to different test conditions, improving resonance efficiency and reducing unnecessary power consumption during high voltage testing.
2. Reliable Voltage Output Quality

Advanced control technology ensures stable voltage generation with low waveform distortion, helping achieve accurate and repeatable test results.
3. Flexible Application Range

The equipment can be configured for multiple applications, including transformer insulation tests, cable withstand tests, GIS testing, and electrical equipment commissioning.
4. Comprehensive Protection Design

Built-in safety functions monitor abnormal conditions such as over-voltage, over-current, and flashover events to improve testing security.

FAQ

Q1: What is the 108kV Variable Frequency AC Resonant Test System mainly used for?

A: It is mainly used for AC withstand testing and insulation evaluation of transformers, cables, GIS, switchgear, and other high voltage equipment.

Q2: What are the advantages of using variable frequency resonance technology?

A: It can achieve high voltage output with lower input power requirements and provides better testing efficiency for capacitive loads.

Q3: Can this system be used for on-site testing?

A: Yes. The modular structure makes it suitable for transportation and installation at substations, power plants, and project locations.

Q4: Can the system configuration be customized?

A: Yes. Voltage level, capacity, and system configuration can be adjusted according to different testing standards and project requirements.
