Product Description

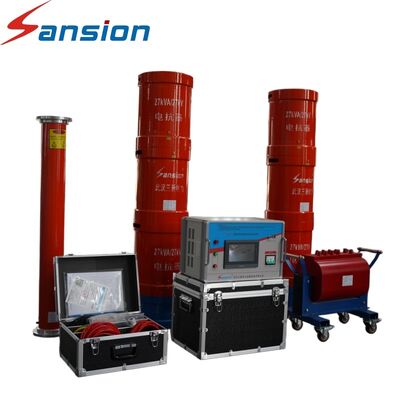

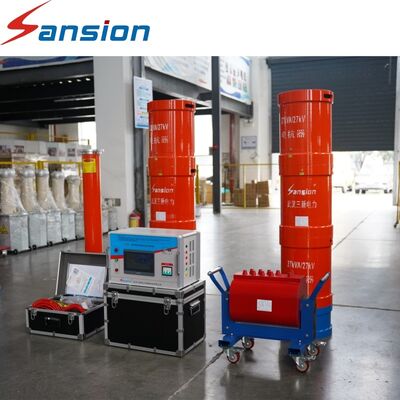

Variable Frequency AC Resonant Test System
The Variable Frequency AC Resonant Test System is a specialized high voltage testing solution designed for checking the insulation capability of electrical equipment under AC withstand conditions. Using adjustable frequency resonance technology, the system generates stable test voltage while optimizing power utilization, making it suitable for testing applications involving high-capacitance loads. It is widely used in power equipment manufacturing, electrical laboratories, and field commissioning projects where accurate insulation assessment is required.
The system helps engineers identify potential insulation weaknesses, verify dielectric performance, and improve the operational safety of power networks. With intelligent control, flexible configuration, and reliable protection functions, the Variable Frequency AC Resonant Test System provides an effective testing method for transformers, power cables, GIS, switchgear, reactors, and other high voltage equipment. It supports both routine quality inspection and preventive maintenance programs.
Product Applications
Transformer and Reactor Testing
The system is suitable for transformer factories and testing centers to perform AC withstand tests on power transformers, reactors, and related components. It assists manufacturers in confirming insulation reliability and improving product quality before delivery.
Cable and Substation Equipment Inspection
For high voltage cables, GIS, and substation equipment, the system provides stable AC testing voltage for commissioning, acceptance testing, and maintenance evaluation. It helps detect insulation problems and reduce possible failures during operation.
Power System Field Testing
Due to its modular design, the equipment can be applied in power plants, substations, and engineering projects. It offers a convenient solution for on-site insulation testing of various high voltage electrical devices.
Product Advantages
-
Advanced Resonance Technology
The system utilizes variable frequency resonance principles to achieve high voltage output with optimized energy consumption, especially suitable for capacitive electrical loads.
-
Accurate Test Results
Stable voltage regulation and high-quality waveform output improve testing accuracy and provide reliable data for insulation condition analysis.
-
Wide Equipment Compatibility
The system can be applied to multiple types of power equipment, including transformers, cables, GIS, switchgear, and other high voltage devices.
-
Enhanced Operation Safety
Integrated protection functions monitor abnormal conditions during testing, helping prevent equipment damage and ensuring safer operation.
FAQ
Q1: What is the Variable Frequency AC Resonant Test System used for?
A: It is mainly designed for AC withstand testing and insulation evaluation of high voltage electrical equipment.
Q2: Why use variable frequency resonance technology for testing?
A: This technology reduces the required power capacity while maintaining stable high voltage output, making it suitable for large-capacitance test objects.
Q3: Which industries commonly use this testing system?
A: It is widely used by transformer manufacturers, power utilities, testing laboratories, and electrical engineering companies.
Q4: Can the system be customized according to project requirements?
A: Yes. Sansion Power can provide customized solutions based on required voltage level, test capacity, and application conditions.
