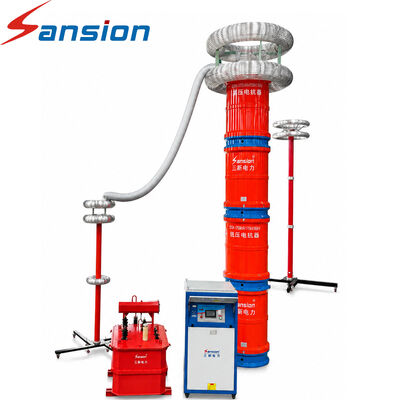

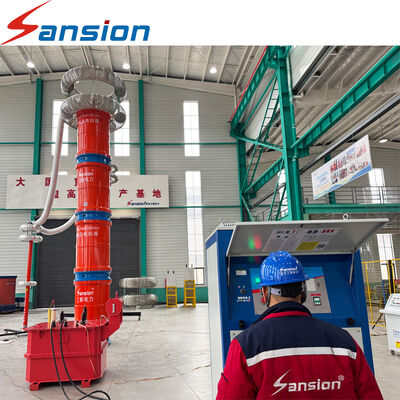

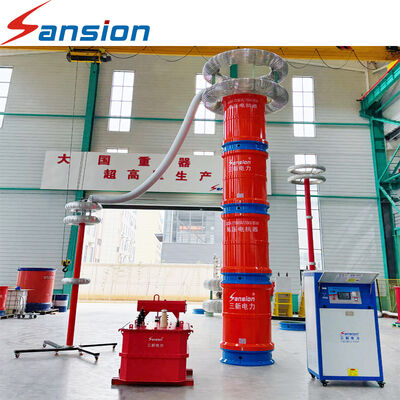

High Voltage Series Resonance Test Equipment Manufacturer for Transformer, GIS and Cable AC Withstand Voltage Test

Large Image : High Voltage Series Resonance Test Equipment Manufacturer for Transformer, GIS and Cable AC Withstand Voltage Test

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBP

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T,Western Union

Contact Now Chat Now

High Voltage Series Resonance Test Equipment Manufacturer for Transformer, GIS and Cable AC Withstand Voltage Test

Description

Frequency Adjustment Range:	20Hz–300Hz	High Voltage Output Current:	1A–100A
Rated Capacity:	300kVA–20000kVA	System Quality Factor:	Q≥50
Power Supply Requirement:	380V, 50Hz/60Hz	Rated Test Voltage:	200kV–2000kV
Highlight:	high voltage resonance test equipment , transformer AC withstand voltage tester , GIS cable resonance test system

Product Description

Sansion Power provides professional High Voltage Series Resonance Test Equipment for global power testing applications.

The equipment uses advanced frequency conversion resonance technology to generate high voltage AC output for insulation testing of electrical power equipment.

It is designed for customers requiring:

High reliability
Accurate testing results
Easy operation
Long-term field application

Typical Customers

Power utilities
Transformer factories
Electrical laboratories
EPC contractors
Research institutions

Product Advantages

Multi-purpose Testing Solution

One system can support:

Transformer testing
Cable testing
GIS testing
Switchgear testing

Intelligent Operation

Features:

Digital control interface
Automatic resonance search
Real-time monitoring
Test data recording

FAQ

Q: What is the service life of the system?

A:
With proper maintenance, the system is designed for long-term industrial testing applications.

Q: Do you provide installation and training support?

A:
Yes. Technical guidance, operation training and after-sales support are available.
