Multifunction AC DC Motor Comprehensive Test System Complete Motor Temperature Rise Torque Speed Insulation Resistance Power Frequency

The motor comprehensive test system is suitable for various tests on AC motors, DC motors, and variable frequency motors with capacity ranging from 0 to 10000kW and voltage class from 0 to 10kV after production inspection and maintenance.

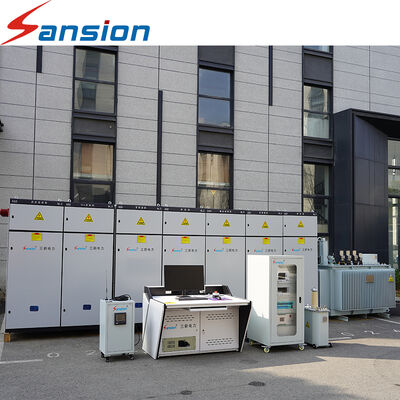

The test bench is composed of an industrial acquisition computer, test power supply system, test control system, sensors & signal conditioning modules, data acquisition hardware & software, numerical operation processing software, graphic display & operation software, test report generation, waveform/measurement result storage and printing software. It features multi-channel, multi-function, and high-precision measurement.

1. Wide Testing Compatibility

   Suitable for AC, DC and variable frequency motors with power of 0~10000kW and voltage of 0~10kV. Supports both factory delivery inspection and post-maintenance test, integrates all motor test items in one system.

2. High-precision Measurement

   Multi-channel synchronous data acquisition for three-phase voltage & current, real-time monitoring of current fluctuation impact. Test data, waveforms and test reports can be stored, exported and printed completely.

3. High Automatic Level & Labor Saving

   Data collection, calculation, frequency/voltage/load stabilization are automatically controlled by computer. It cuts manual errors and labor intensity greatly and improves testing efficiency.

4. Grid-friendly Power Supply & Energy Saving

   Adopts variable frequency & variable voltage startup mode with no impact on public power grid. Equipped with matched 60Hz test power supply; power consumption from grid is no more than 180kW under full-load test of 400kW motor.

5. Customizable

   Widely applied in motor factories, new energy power generation, rail transit and machinery manufacturing. Custom service is available.

• Vibration measurement
• Temperature measurement
• Temperature rise test
• Insulation resistance measurement
• Load test
• Torque and speed measurement
• Stalled rotor test
• Inter–turn withstand voltage test for high and low voltage motors
• Measurement of no–load loss and no–load current of high and low voltage motors
• Measurement of cold resistance of high and low voltage motors
• Measurement of three–phase/single–phase voltage and average voltage
• High and low voltage motor power frequency withstand voltage test
• Three/single–phase current and average current measurement

1. What is a Motor Comprehensive Test System?

A:A Motor Comprehensive Test System is an integrated testing platform used to evaluate the electrical performance, insulation condition, operating parameters, and mechanical characteristics of motors. It can perform multiple tests including voltage, current, power, no-load current, winding resistance, insulation resistance, vibration, temperature rise, torque and speed measurement.

2. Why is insulation resistance testing important for motors?

A:Insulation resistance testing is an important method for evaluating motor insulation condition. It helps detect insulation aging, moisture, contamination and potential leakage problems inside motor windings, ensuring safer operation and improving the reliability of motors during production testing and preventive maintenance.

3. Can the motor test system test both low voltage and high voltage motors?

A:Yes, the Motor Comprehensive Test System supports testing requirements for both low voltage and high voltage motors. It can measure electrical parameters, perform insulation tests, withstand voltage tests and analyze motor performance under different operating conditions.

4. Does this motor testing equipment support automatic testing?

A:Yes, the system features a high degree of automation. Test procedures, data acquisition, parameter calculation and result analysis can be controlled automatically through computer software, reducing manual operation errors and improving testing efficiency.

5. What are the advantages of the Motor Comprehensive Test System?

A:The Motor Comprehensive Test System integrates multiple motor testing functions into one platform, offering comprehensive testing capability, accurate measurement, automated operation, flexible configuration and reliable data management. It helps manufacturers improve motor quality inspection efficiency and reduce testing workload.
