Advanced Temperature Rise Test Equipment for Electrical Safety Testing and Performance Evaluation

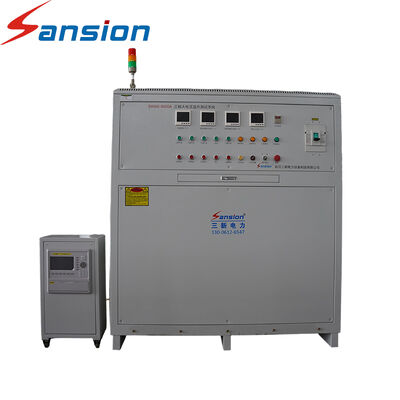

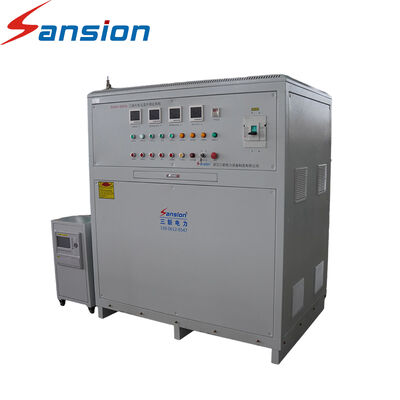

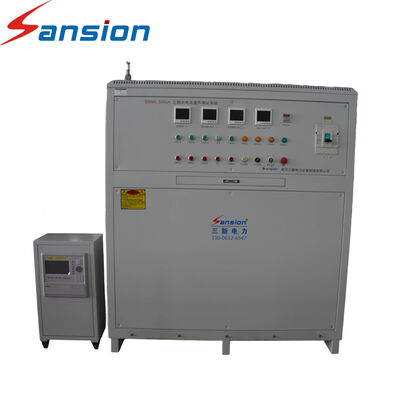

Large Image : Advanced Temperature Rise Test Equipment for Electrical Safety Testing and Performance Evaluation

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXWA

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

Advanced Temperature Rise Test Equipment for Electrical Safety Testing and Performance Evaluation

Description

Structure:	Integrated Type / Split Type Optional	Contact Detection:	Auto Identify NO & NC Contacts
Current Waveform:	Standard Sine Wave, THD ≤1%	Temp. Test Range:	10~800℃
Open Output Voltage:	10V /15V /20V	Timing Accuracy:	0.001S
Highlight:	Temperature Rise Test Equipment , Electrical Safety Testing Equipment , Performance Evaluation Test Equipment

Product Introduction

Our Automatic Temperature Rise Test System combines a high-current generator, digital measurement technology, and temperature monitoring capabilities in one professional testing solution.
Designed for demanding electrical testing environments, the system supports manual and automatic operation, real-time measurement display, automatic curve generation, and standardized test report generation. Its digital control system helps improve testing efficiency, measurement consistency, and data traceability.

Two Configurations Integrated High-Current Test System Split-Type High-Current Test System Key Advantages High-current AC/DC testing configurations Multi-channel temperature data acquisition Digital test control and monitoring Automatic curve generation and report output Integrated or split-type system architecture Configurable solutions for application-specific needs Application Electrical Switchgear and Distribution Equipment

Support temperature rise evaluations of compatible current-carrying assemblies and electrical distribution components.

Circuit Protection and Switching Devices

Provide high-current test capabilities for applicable electrical components, subject to their ratings and the selected test procedure.

Conductors and Electrical Connections

Monitor temperature behavior at selected measurement points during current-carrying tests.

Electrical Manufacturing Quality Control

Incorporate temperature rise testing into product verification and manufacturing quality processes.

Engineering and Testing Laboratories

Support controlled electrical experiments, thermal performance evaluation, and test data collection.

FAQ Q:What is a high-current temperature rise testing system? It is a testing solution that supplies the required current to compatible electrical products or components while supporting temperature monitoring during the test. Q:How many temperature measurement points can be monitored? The listed configurations include 12, 24, 48, and 64 channels. The number of channels should be selected according to the number of required measurement points. Q:Is AC or DC output available? Both AC and DC output configurations are listed. The available mode, output capacity, and current range depend on the selected configuration. Q:Which equipment structure should I choose? The integrated type combines the equipment into a consolidated arrangement. The split type separates the main equipment and control console. The best choice depends on the installation space and testing workflow.
