Transformer Turns Ratio and Winding Resistance Test Bench, High-Precision Transformer Electrical Testing Equipment for Winding Verification, Vector Group Identification and Tap Changer Inspection

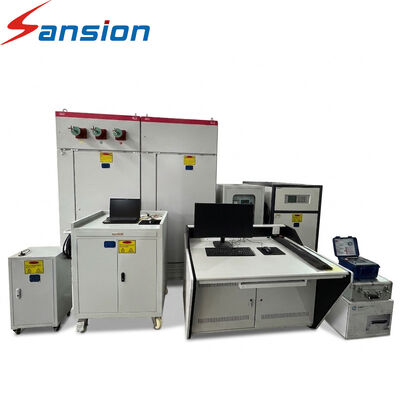

Large Image : Transformer Turns Ratio and Winding Resistance Test Bench, High-Precision Transformer Electrical Testing Equipment for Winding Verification, Vector Group Identification and Tap Changer Inspection

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Transformer Turns Ratio and Winding Resistance Test Bench, High-Precision Transformer Electrical Testing Equipment for Winding Verification, Vector Group Identification and Tap Changer Inspection

Description

Testing Functions:	Customizable	Voltage Levels:	Adjustable
Measurement Technology:	Advanced	Testing Data:	Precise
Testing Efficiency:	Improved	System Configuration:	Flexible
Highlight:	Transformer Turns Ratio Test Bench , Winding Resistance Test Equipment , Transformer Electrical Testing System

Product Overview

The Transformer Turns Ratio and Winding Resistance Test Bench is a high-precision electrical testing system engineered for manufacturing quality control, winding verification, tap changer inspection, and transformer maintenance. It verifies critical electrical characteristics of transformer windings during manufacturing, maintenance, repair, and acceptance testing.

Turns ratio testing checks the relationship between winding voltages and helps identify ratio deviations, incorrect connections, and certain winding or tap-related issues. Vector group verification confirms the intended winding connection and phase relationship.

DC winding resistance measurement evaluates winding and connection resistance. When measured under controlled conditions and interpreted with appropriate temperature correction, resistance results can help identify abnormal connections and certain tap changer-related problems.

The system can integrate dedicated measuring instruments, centralized connections, digital displays, and optional computer-based data recording.

Main Testing Functions

Transformer turns ratio measurement
Ratio deviation calculation
Vector group identification or verification
DC winding resistance measurement
Tap position testing, when supported
Three-phase measurement, when configured
Measurement data storage
Comparison of test results
Optional automatic report generation
Digital display and data export, when available

Typical Applications

Transformer winding manufacturing
Transformer assembly and final inspection
Tap changer inspection
Transformer repair and refurbishment
Preventive maintenance
Commissioning and acceptance testing

Customer Pain Points and Solutions

Winding connection errors may cause commissioning problems.

Ratio and vector group tests help verify winding relationships.

Abnormal resistance may indicate connection issues.

Resistance measurement supports winding and connection assessment.

Manual measurements complicate historical comparisons.

Electronic data storage helps track results over time.

A complete test system may exceed a customer's budget.

A focused testing platform can prioritize essential winding tests.

Frequently Asked Questions

Q1: Why are both ratio and winding resistance tests necessary?

They evaluate different electrical characteristics. Ratio testing checks winding voltage relationships, while resistance testing evaluates winding and connection resistance.

Q2: Can it test different tap positions?

Certain configurations support multiple tap positions. Confirm the required tap range and operation method.

Q3: Is temperature correction necessary for winding resistance?

Temperature should be recorded and results interpreted using an appropriate correction method when required by the test procedure.

Q4: Can these tests identify every winding fault?

No. Additional tests may be needed to investigate insulation defects, winding deformation, or other internal problems.

Q5: Can this equipment be integrated into a comprehensive test bench?

Yes, subject to instrument compatibility, control integration, and overall system design.

Request technical specifications and a customized quotation for transformer turns ratio and winding resistance testing equipment.
