Three-Phase Transformer Test Bench for Factory Routine Testing, Precision Transformer Testing Equipment for Turns Ratio, Winding Resistance, No-Load Loss and Load Loss Measurement

Description
Testing Functions: Customizable Voltage Levels: Adjustable
Measurement Technology: Advanced Testing Data: Precise
Testing Efficiency: Improved System Configuration: Flexible
Highlight:

Three-Phase Transformer Test Bench

,

Transformer Turns Ratio Testing Equipment

,

Winding Resistance and Loss Measurement

Product Overview

The Three-Phase Transformer Test Bench is designed for transformer manufacturers requiring reliable and consistent electrical performance testing of three-phase distribution transformers and compatible power transformers.

The system can integrate precision electrical measurement instruments, adjustable test power supplies, dedicated transformer test equipment, and centralized control functions. Depending on the selected configuration, multiple routine tests can be performed within one coordinated testing platform, reducing repeated manual setup and improving workflow efficiency.

The test bench can be customized for different transformer capacities, voltage ratings, winding connections, test currents, and production requirements. Digital measurement, automatic calculations, data recording, and test report generation are available depending on the configuration.

This solution is suitable for transformer factories seeking to standardize production testing, improve measurement consistency, and maintain traceable quality inspection records.

Main Testing Functions
  1. Three-phase voltage, current, and power measurement
  2. Transformer turns ratio and ratio deviation testing
  3. Vector group verification
  4. DC winding resistance measurement
  5. No-load current and no-load loss testing
  6. Load loss and short-circuit impedance measurement
  7. AC withstand voltage testing, when configured
  8. Induced voltage testing, when configured
  9. Digital measurement and data recording
  10. Automatic calculations and test report generation
Typical Applications
  • Three-phase distribution transformer manufacturing
  • Industrial transformer production
  • Factory routine testing and final inspection
  • Transformer repair workshops
  • Electrical equipment quality control laboratories
  • Transformer factory acceptance testing
Customer Pain Points and Solutions
1. Repeated manual setup slows down production.

An integrated test platform helps coordinate selected testing procedures.

2. Different transformer models require flexible testing arrangements.

Configurable measurement ranges and test connections accommodate compatible models.

3. Manual calculations increase the risk of recording errors.

Digital measurement and automatic calculations improve data consistency.

4. Quality departments need traceable testing records.

Electronic data storage and standardized reports simplify record management.

Frequently Asked Questions
Q1: Can this test bench test both single-phase and three-phase transformers?

A: The available configuration depends on the selected system design. Please provide your transformer types and ratings for confirmation.

Q2: Can it perform no-load and load loss measurements?

A: Yes, when the appropriate power supply, measurement instruments, and test circuits are included.

Q3: Does the equipment support automatic testing?

A: Optional automation features may include centralized control, predefined test sequences, automatic calculations, and report generation.

Q4: How is measurement accuracy ensured?

A: Accuracy depends on the selected instruments, measurement ranges, wiring, calibration, and operating conditions. Detailed accuracy specifications should be confirmed for each test function.

Q5: What information is needed before purchasing?

A: Please provide transformer capacity, voltage ratings, winding connections, required tests, applicable standards, and factory power supply requirements.

Request a customized three-phase transformer test bench solution for your factory. Contact us for technical specifications, configuration recommendations, and a quotation.

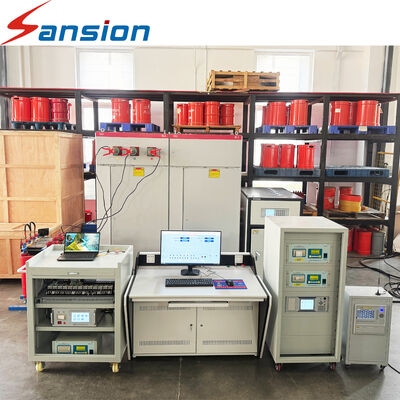

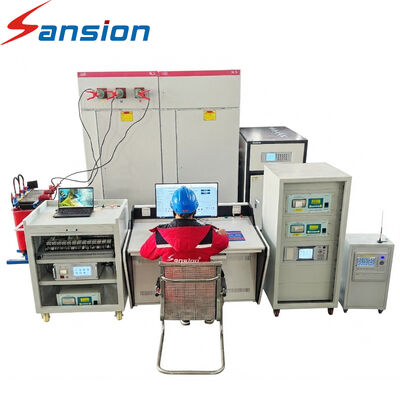

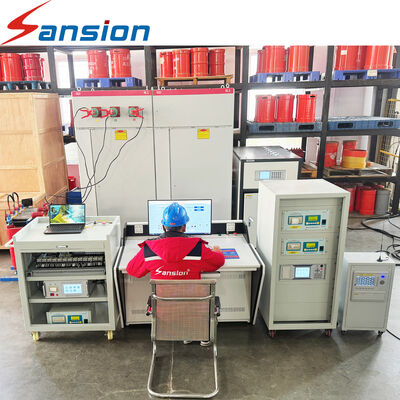

Three-phase transformer test bench system for factory routine testing, featuring integrated measurement instruments, adjustable power supplies, and centralized control panel
