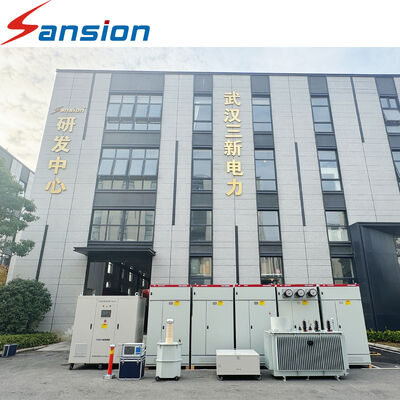

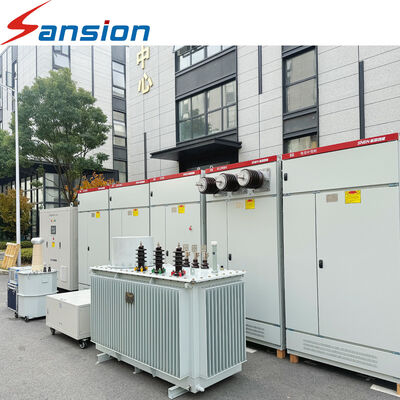

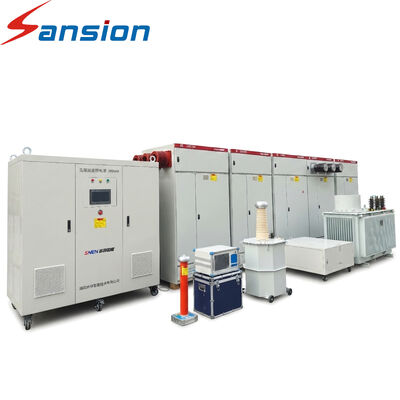

Automatic Transformer Comprehensive Test Bench for Distribution and Power Transformers Integrated Transformer Testing Equipment with High-Precision Measurement, Computer Control

The Automatic Transformer Comprehensive Test Bench is an integrated testing solution designed for transformer manufacturers, electrical equipment factories, quality inspection departments, and power engineering laboratories. It combines multiple transformer electrical testing functions into one coordinated platform, helping improve production efficiency, standardize test procedures, and ensure reliable quality control.

Designed for distribution transformers and selected power transformer applications, the system can integrate precision electrical measurement instruments, voltage and current regulation equipment, test connections, computer-based control, data acquisition, and automatic reporting functions according to customer requirements.

With configurable test procedures, operators can enter transformer nameplate information, select the required test items, record measurement results, and generate structured test reports. The system can be customized according to transformer capacity, voltage class, testing standards, and production requirements.

Whether upgrading an existing transformer production line or establishing a new transformer testing laboratory, this integrated test bench provides a flexible solution for efficient transformer quality assurance.

1. Transformer turns ratio and ratio deviation testing
2. Vector group and phase relationship verification
3. DC winding resistance measurement
4. No-load loss and no-load current testing
5. Load loss and short-circuit impedance measurement
6. AC power-frequency withstand voltage testing
7. Induced voltage withstand testing
8. Insulation resistance testing, when configured
9. Automatic data acquisition and measurement calculations
10. Test data storage and automatic report generation

• Distribution transformer manufacturing plants
• Power transformer production facilities
• Transformer repair and refurbishment workshops
• Electrical equipment testing laboratories
• Utility maintenance departments
• Transformer factory acceptance testing
• Quality assurance and production inspection departments
