Transformer Test System Manufacturer for Customized Power Transformer Testing Solutions and Laboratory Equipment

Large Image : Transformer Test System Manufacturer for Customized Power Transformer Testing Solutions and Laboratory Equipment

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

Transformer Test System Manufacturer for Customized Power Transformer Testing Solutions and Laboratory Equipment

Description

Fault Isolation Time:	10ms	Protection Architecture:	Triple Overload Protection
Operation Mode:	Automated PC Measurement & Logging	Test Scope:	Different Ratings Power Transformers
Measurement Functions:	DC Resistance, Turns Ratio, Electrical Parameters	System Components:	Control Console, Instrument Cabinet, Sampling Cabinet, Distribution Cabinet, Voltage Regulator, Generator Set, Test Transformer
Highlight:	Customized Transformer Test System , Power Transformer Testing Solutions , Transformer Laboratory Equipment

Product Overview

The SXBZ Series Transformer Comprehensive Test System is an integrated testing solution for power engineering projects involving transformer installation, acceptance, and electrical performance verification.
For electrical contractors, substation projects, and power infrastructure developers, transformer testing is an important part of verifying equipment condition before energization and handover. The SXBZ Series combines selected measuring instruments, control equipment, and auxiliary units into a coordinated platform tailored to the project’s testing requirements.

Testing Functions

Winding DC Resistance Measurement
Measures transformer winding resistance for comparison with specified acceptance criteria and reference values.
Turns Ratio Measurement
Checks the transformer turns ratio against the required values for the specified winding connections and tap positions.
Electrical Parameter Testing
Supports selected electrical measurements when the appropriate instruments, such as a power analyzer, are included.
High-Voltage Withstand Testing
Can be considered as part of a suitable configuration when the project requires high-voltage testing equipment and corresponding safety provisions.
Additional Project-Specific Tests
Other testing functions can be assessed according to the transformer type, contractual requirements, and applicable standards.

Applications

Substation Construction: Support specified transformer testing activities associated with substation projects.
Electrical EPC Contractors: Plan testing equipment requirements for power engineering and infrastructure contracts.
Transformer Installation Projects: Prepare the required electrical test setup for applicable inspection procedures.
Power Utilities: Support selected transformer testing tasks within maintenance and asset management programs.
Electrical Equipment Integrators: Coordinate transformer testing equipment with broader project requirements.

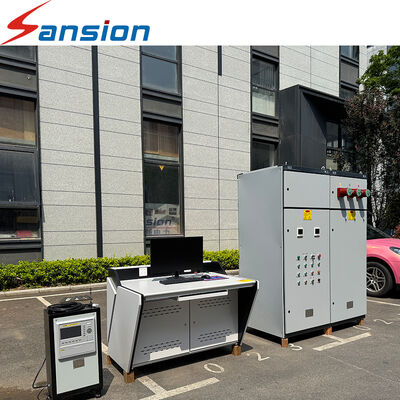

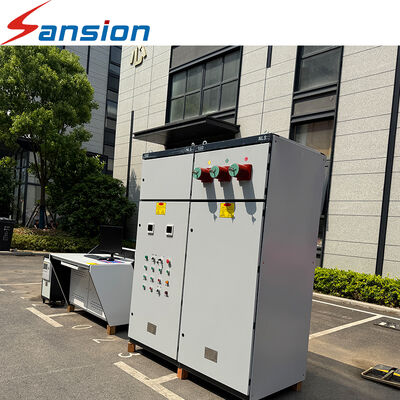

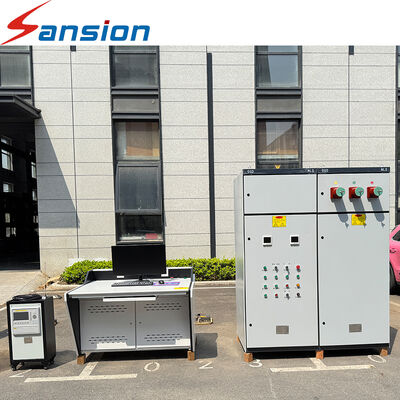

System Components and Configuration

Centralized control console
Instrument cabinet
Transformer comprehensive sampling cabinet
Distribution cabinet
Induction voltage regulator
Medium-frequency generator set
Test transformer and intermediate transformer
Selected measuring instruments, such as a DC resistance tester, turns ratio tester, or power analyzer

FAQ

Q1: Can the SXBZ Series be specified for a substation project?

It can be evaluated for substation-related transformer testing requirements. Suitability depends on the required test procedures, transformer specifications, and agreed equipment configuration.

Q2: Does the system cover every transformer commissioning test?

Not necessarily. Transformer commissioning may involve multiple specialized tests and field instruments. The complete project test list should be reviewed before confirming the system specifications.

Transformer Test System Manufacturer for Customized Power Transformer Testing Solutions and Laboratory Equipment
