Advanced Transformer Testing System for Distribution and Power Transformer Manufacturers

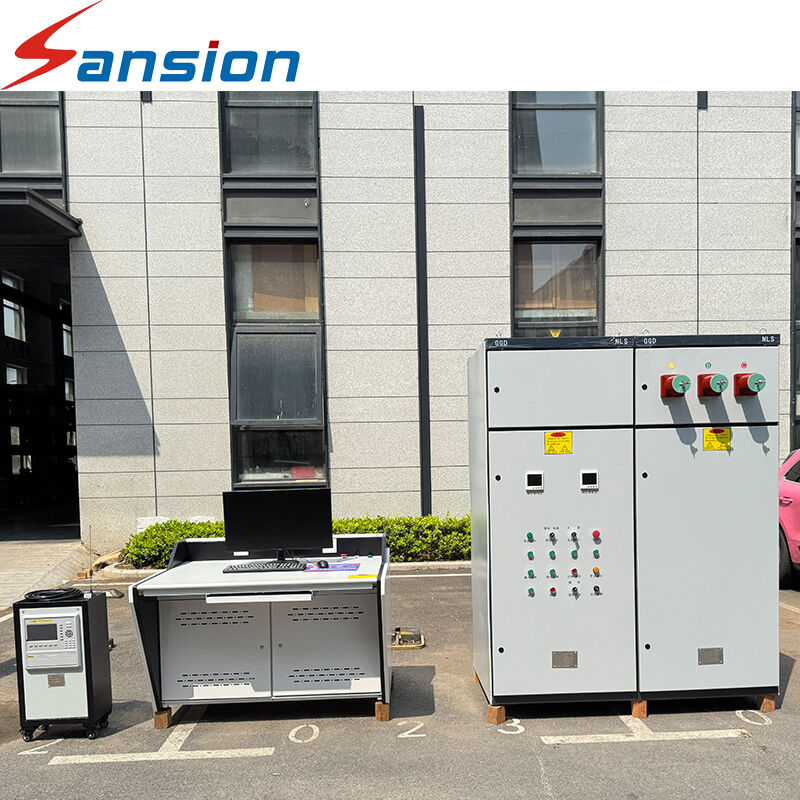

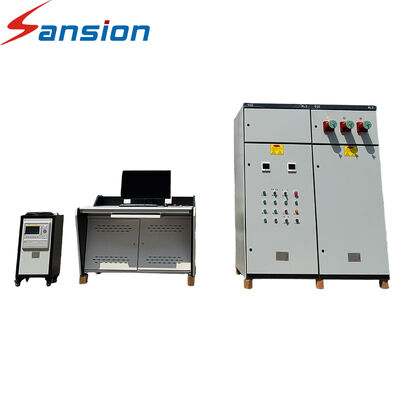

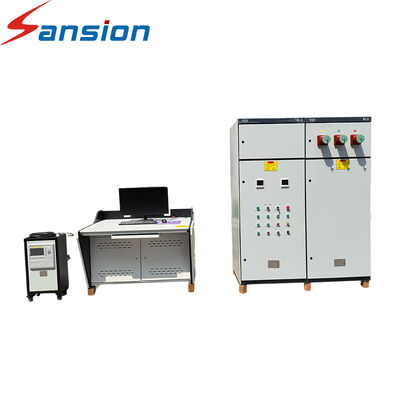

The SXBZ Series Transformer Comprehensive Test System provides an integrated platform for coordinating selected measurement instruments, power supply units, test transformers, and control equipment.
Designed for transformer manufacturers and professional electrical testing facilities, the system can be configured around the required test procedures and transformer specifications. Its computer-based measurement and control architecture supports centralized operation of the connected equipment.

• Streamline Testing Equipment OperationA transformer testing station may involve several instruments and auxiliary units. Integrating compatible equipment into one coordinated platform helps organize connections and operating procedures.
• Match the Testing Setup to Production RequirementsDifferent transformer models may require different test procedures and measurement ranges. The SXBZ Series can be configured according to the manufacturer's product range and specified factory testing requirements.
• Coordinate Multiple Testing FunctionsThe system can incorporate selected measurement instruments and testing units, providing a common platform for managing the configured equipment.
• Support Factory Quality InspectionAppropriate electrical measurements help manufacturers evaluate transformer characteristics against specified technical requirements. The actual inspection scope depends on the instruments and test functions included in the system.
• Incorporate Safety ProtectionThe system features a three-level overcurrent protection mechanism. According to the available product information, fault-current interruption can occur within 10 ms under specified protection conditions.

1. DC Winding Resistance MeasurementMeasures winding resistance to help assess resistance consistency and winding connection conditions.
2. Transformer Turns Ratio MeasurementVerifies the transformer turns ratio against the specified values and supports checks of winding connections and tap positions.
3. Electrical Parameter MeasurementWith compatible instruments, the system can measure relevant electrical parameters required by the selected testing procedure.
4. High-Voltage TestingSuitable test transformers and associated equipment can be incorporated for specified high-voltage testing applications.

• Transformer Production LinesFor manufacturers that need a dedicated testing arrangement to support specified electrical checks during production and factory acceptance.
• Transformer Factory Test DepartmentsFor organizing measurement instruments and test equipment used by quality inspection personnel.
• Transformer Repair WorkshopsFor supporting selected electrical tests following repair or maintenance, subject to the installed equipment.
• Electrical Equipment Testing CentersFor facilities requiring a coordinated platform for defined transformer testing applications.
• Power Equipment Manufacturing EnterprisesFor companies seeking to integrate compatible measurement and testing functions into their existing operations.
