Integrated Transformer Test System for Transformer Ratio, Winding Resistance and Insulation Testing

Product Introduction

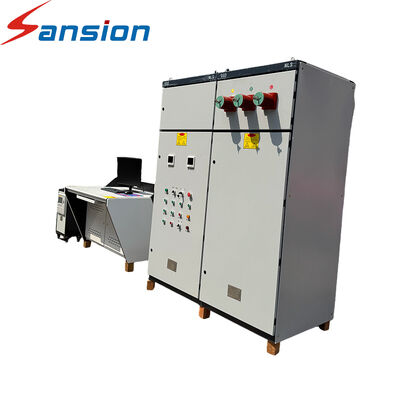

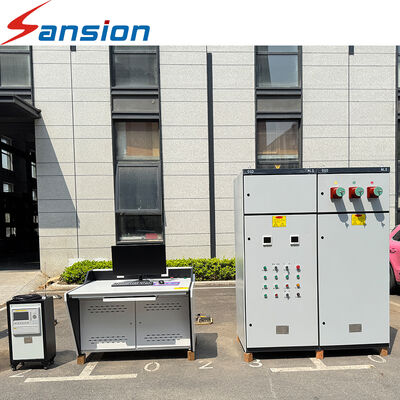

The SXBZ Series Transformer Comprehensive Test System is designed to meet the electrical testing needs of transformer manufacturing plants, maintenance facilities, and professional testing laboratories.
For manufacturers handling different transformer specifications, selecting and coordinating individual testing instruments can require careful planning. The SXBZ Series provides an integrated platform that combines selected testing equipment, measurement instruments, power supply units, and control components according to the required application.

Main Technical Features

• Integrated System ArchitectureSelected power equipment, measurement instruments, and control components are arranged as one coordinated testing solution.
• Computer-Based Measurement and ControlThe system uses computer-based automatic measurement and control to coordinate the configured testing equipment. Specific automation functions depend on the supplied configuration.
• Flexible Instrument SelectionCompatible instruments can be selected according to the required electrical measurements and testing procedures.
• Configurable High-Voltage TestingSuitable test transformers and associated components can be included for specified high-voltage applications.
• Three-Level Overcurrent ProtectionThe system incorporates a three-level overcurrent protection mechanism. Product information specifies fault-current interruption within 10 ms under applicable protection conditions.
• Application-Specific ConfigurationEquipment ratings, test functions, and system components should be matched to the intended transformer applications and technical requirements.

Available Testing Functions

• DC Winding Resistance TestMeasures transformer winding resistance to help evaluate electrical continuity, resistance consistency, and winding connection conditions.
• Transformer Turns Ratio TestMeasures the transformation ratio and supports verification against the specified ratio and tap position.
• Electrical Parameter MeasurementWith a compatible power analyzer and sampling equipment, the system can collect relevant electrical measurements required by the selected test procedure.
• High-Voltage Withstand TestWith suitable test transformers and associated equipment, the system can be configured for applicable high-voltage withstand testing.
• Additional Testing RequirementsOther functions may be considered according to the project scope, required test standards, and compatibility of the selected instruments.
