1. Product Description

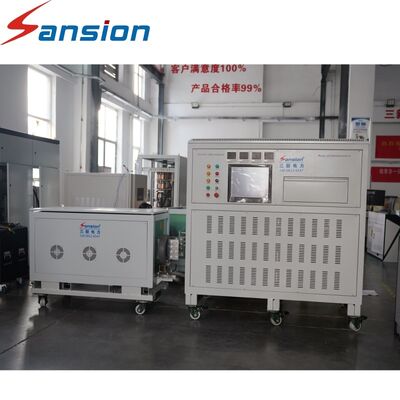

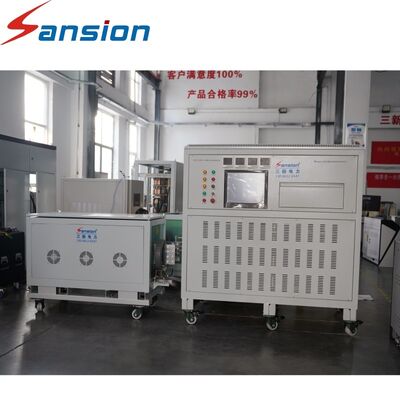

SXWA-5000A High Current Temperature Rise Test System
The SXWA-5000A High Current Temperature Rise Test System is designed for electrical product inspection and quality control applications requiring high current temperature testing. The system provides a stable testing current through a high-capacity voltage regulator and high magnetic permeability core transformer, allowing users to evaluate the temperature characteristics of electrical products during operation.
The equipment integrates current output, digital measurement, and protection functions into one testing platform. During the test process, operators can observe current, voltage, and temperature values directly through the digital display system, making test operation and data recording more convenient.
The SXWA-5000A is widely used by electrical equipment manufacturers for product inspection, design verification, and production quality control. It is applicable for thermal relays, motor protectors, contactors, circuit breakers, switchgear, protection panels, busbars, and cables.
2. Product Important Parameters
Parameter |
Specification |
Product Model |
SXWA-5000A |
Product Type |
High Current Temperature Rise Test Equipment |
Rated Current Output |
5000A |
Testing Function |
Temperature Rise Test |
Operation Mode |
Manual and Automatic |
Measurement Display |
Current, Voltage and Temperature |
Application Objects |
Electrical Products and Power Components |
Protection Function |
Digital Overcurrent Protection |
3. Product Applications
Electrical Product Inspection
The system is suitable for manufacturers that need to inspect temperature characteristics of electrical products before delivery and ensure product reliability.
Power Component Testing
It can be applied to current-carrying components such as busbars, cables, and electrical connection parts for checking heating conditions under current operation.
Manufacturing Quality Control
The equipment supports production testing processes for switchgear, circuit breakers, contactors, and protection devices in electrical industries.
4. Product Advantages
Stable Testing Current
The system provides reliable 5000A current output to meet different electrical product temperature testing requirements.
Accurate Digital Measurement
Digital instruments display important testing parameters clearly, helping operators obtain accurate test information.
Convenient Operation Process
The equipment supports manual and automatic operation modes for different testing environments.
Professional Industrial Application
The system is designed for electrical manufacturers requiring efficient temperature rise testing equipment.
5. FAQ
Q1: What is SXWA-5000A used for?
A: It is used for temperature rise testing of electrical products and power components under high current conditions.
Q2: Which products can be tested by this equipment?
A: It can test thermal relays, motor protectors, contactors, circuit breakers, switchgear, busbars, and cables.
Q3: How does the system measure test results?
A: The equipment uses digital instruments to display current, voltage, and temperature values during testing.
Q4: Can this equipment be used for factory inspection?
A: Yes, it is suitable for production inspection and quality control in electrical manufacturing factories.
Q5: Does SXWA-5000A support automatic operation?
A: Yes, the system supports both manual operation and automatic control modes.
