1. Product Description

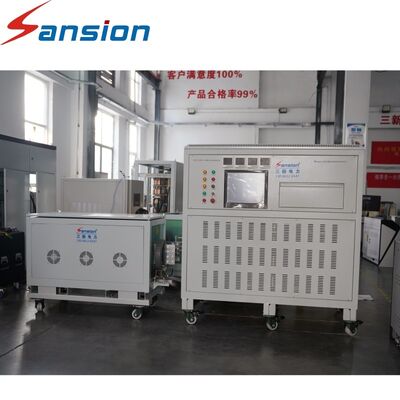

SXWA-5000A Three Phase High Current Temperature Rise Test System

The SXWA-5000A Three Phase High Current Temperature Rise Test System is a specially designed high current testing solution for professional electrical laboratories and power equipment manufacturers. The system is developed to provide stable current output for temperature rise testing and thermal performance analysis of various electrical products.

It adopts a high-capacity voltage regulator and high magnetic permeability core transformer structure, which provides reliable current output performance with efficient operation. The equipment integrates measurement and control functions, allowing users to monitor current, voltage, and temperature values during the testing process.

The SXWA-5000A can be configured according to different project requirements and test applications. It is suitable for research institutions, inspection centers, and electrical manufacturers requiring customized testing equipment for thermal evaluation of switchgear, circuit breakers, protection devices, busbars, cables, and other electrical components.

2. Product Important Parameters

3. Product Applications

Electrical Laboratory Research

The system is suitable for laboratories conducting electrical product research, performance evaluation, and temperature characteristic analysis.

Power Equipment Factory Testing

Manufacturers can use the equipment for quality inspection of switchgear, circuit breakers, protection equipment, and other electrical products.

Customized Engineering Projects

The system can be applied to special testing projects requiring high current output and temperature rise evaluation based on specific customer requirements.

4. Product Advantages

Project-Based Customized Design

The system can be configured according to different test objects, current requirements, and application environments.

Reliable Testing Performance

The high current output structure ensures stable operation during temperature rise testing processes.

Integrated Measurement Function

The equipment combines current, voltage, and temperature measurement for convenient test monitoring.

Suitable for Professional Applications

It is designed for electrical manufacturers, laboratories, and organizations requiring dedicated high current testing solutions.

5. FAQ

Q1: What is the SXWA-5000A designed for?

A: It is designed for high current temperature rise testing of electrical equipment and components.

Q2: Can the system be customized for different projects?

A: Yes, the system can be customized according to test requirements and application conditions.

Q3: Where can this equipment be used?

A: It can be used in electrical laboratories, manufacturing facilities, and inspection organizations.

Q4: What products can be tested with this system?

A: It can test switchgear, circuit breakers, protection devices, busbars, cables, and other electrical components.

Q5: What measurement functions are included?

A: The system supports measurement and display of current, voltage, and temperature-related values.
