Product Description

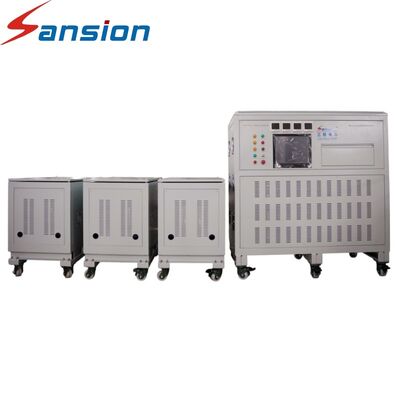

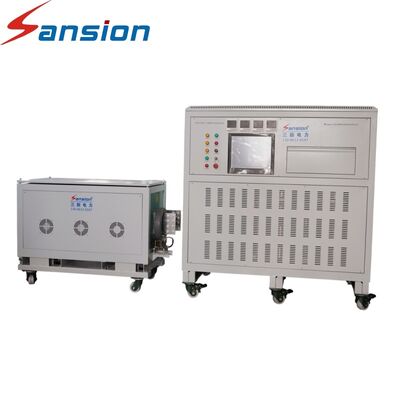

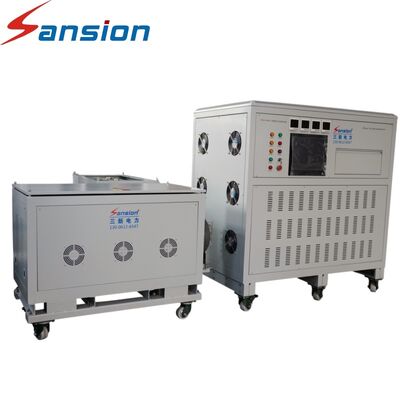

SXWA-5000A Three Phase High Current Temperature Rise Test System
The SXWA-5000A Three Phase High Current Temperature Rise Test System is a professional testing solution designed for evaluating the heating performance of power equipment and current-carrying components. It adopts a high capacity voltage regulation system and high permeability core transformer technology to provide strong current output with efficient operation.
The equipment is mainly applied in power equipment manufacturing and inspection processes where stable high current loading is required. By applying controlled current to the tested products, the system helps users analyze temperature increase, heat transfer characteristics, and operational stability.
Product Important Parameters
|
Parameter
|
Specification
|
|
Product Model
|
SXWA-5000A
|
|
Product Type
|
Three Phase High Current Temperature Rise Test System
|
|
Rated Current Output
|
5000A
|
|
Application
|
Switchgear, Circuit Breaker, Busbar, Cable Testing
|
|
Transformer Structure
|
High Magnetic Permeability Core Transformer
|
|
Operation Method
|
Manual / Automatic Control
|
|
Measurement Function
|
Current, Voltage and Temperature Measurement
|
|
Protection Function
|
Overcurrent Protection and Timing Setting
|
Product Applications
Switchgear Temperature Rise Testing
The system is designed for switchgear manufacturers to verify temperature performance of electrical cabinets, conductive connections, and internal components under high current conditions.
Busbar and Cable Thermal Testing
It provides stable current loading for busbars and cables, helping evaluate heat generation, temperature distribution, and long-term operation reliability.
Power Equipment Manufacturing Inspection
The equipment is suitable for production testing departments and quality control laboratories to perform thermal verification before product delivery.
Product Advantages
High Output Performance
The system provides 5000A high current output to support temperature rise testing of large electrical components.
Compact Structural Design
The high efficiency transformer structure provides large output capacity while maintaining a compact equipment design.
Clear Digital Display
Digital instruments allow direct observation of current, voltage, and temperature values during testing.
Flexible Testing Solution
The system can be configured according to different tested products and application requirements.
FAQ
Q1: What equipment can be tested by SXWA-5000A?
A: It can be used for switchgear, circuit breakers, busbars, cables, and other electrical components requiring temperature rise tests.
Q2: What is the purpose of temperature rise testing?
A: Temperature rise testing helps verify whether electrical equipment can operate safely under continuous current conditions.
Q3: Does this system provide automatic test functions?
A: Yes, the system supports automatic operation, curve generation, and standard report output.
Q4: Can it be used in electrical manufacturing factories?
A: Yes, it is suitable for electrical equipment manufacturers, testing departments, and laboratories.
Q5: What protection functions does the system have?
A: The system provides digital overcurrent protection and adjustable timing current protection functions.
