5000A High-Current Temperature Rise Testing Equipment and Test System for Electrical Components and Power Equipment Inspection

1.Product Description

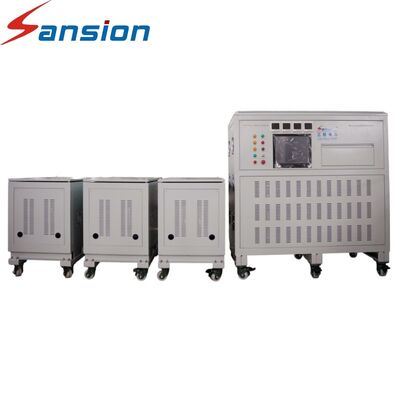

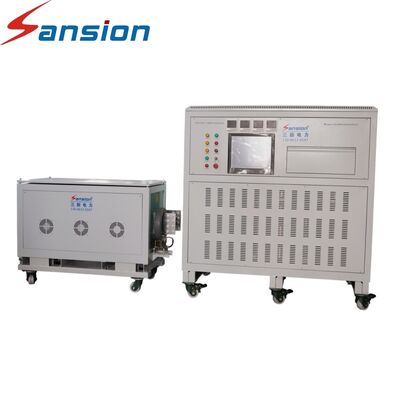

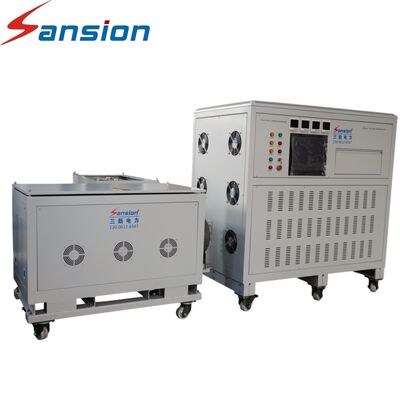

SXWA-5000A Three Phase High Current Temperature Rise Test System

The SXWA-5000A Three Phase High Current Temperature Rise Test System is developed for high current thermal testing of electrical components under simulated operating conditions. The system uses a high capacity voltage regulator and high magnetic permeability core current transformer to achieve strong output capability with low energy consumption and compact structure.

Designed for temperature rise evaluation, this equipment provides accurate measurement of current, voltage, and temperature-related values during testing. It supports both manual and automatic operation modes, allowing users to complete testing procedures efficiently. The system can automatically generate test curves and standard reports, improving test data management and analysis.

The SXWA-5000A is suitable for manufacturers and laboratories that need reliable high current testing solutions for thermal relays, motor protectors, contactors, circuit breakers, switchgear, and other electrical components.

2. Product Important Parameters

3. Product Applications

Thermal Relay and Motor Protection Testing

The system is used for checking thermal characteristics of thermal relays and motor protection devices under high current conditions, helping manufacturers verify product performance.

Contactor and Circuit Breaker Testing

It provides controlled high current output for contactors, air circuit breakers, and circuit breakers to evaluate temperature increase and electrical reliability.

Electrical Component Quality Inspection

The equipment is suitable for production lines and testing departments requiring accurate temperature rise measurement and test record management.

4. Product Advantages

Large Current Output Capacity

The system provides 5000A high current output to meet testing requirements of various electrical components.

Accurate Test Measurement

Digital meters display test parameters clearly, making operation and result recording more convenient.

Intelligent Data Management

Automatic curve generation and report output improve testing efficiency and reduce manual recording work.

Safe Testing Operation

Digital protection functions improve equipment safety during high current testing processes.

5. FAQ

Q1: What is the SXWA-5000A mainly used for?

A: It is designed for temperature rise testing of electrical components and power equipment under high current conditions.

Q2: Which products can be tested by this system?

A: It can be used for thermal relays, motor protectors, contactors, circuit breakers, switchgear, and other electrical products.

Q3: Does the system support automatic testing?

A: Yes, it supports manual and automatic operation modes.

Q4: Can test curves be generated automatically?

A: Yes, the system can automatically generate curves and standard test reports.

Q5: Can the system be customized?

A: Yes, customized solutions can be provided according to different testing requirements.
