Low Partial Discharge GIS Test System for High Voltage AC Withstand and Electrical Insulation Testing

Product Description

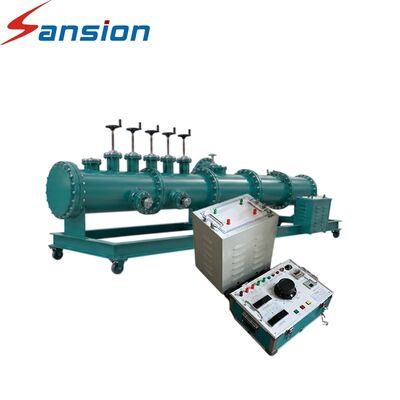

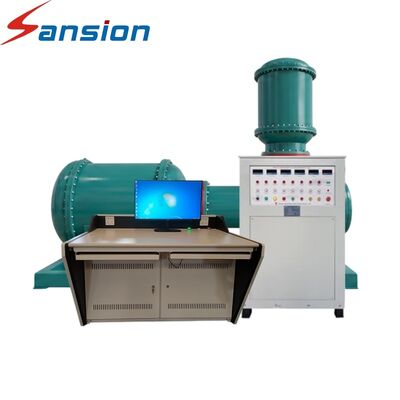

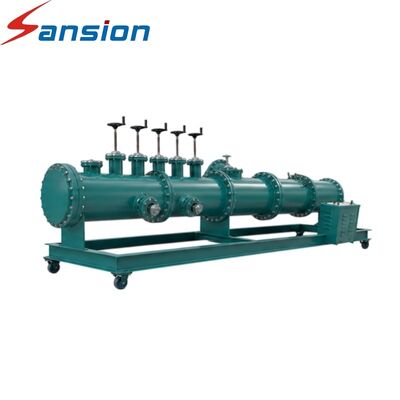

SXGTU GIS Partial Discharge AC Withstand Test System

The SXGTU GIS Partial Discharge AC Withstand Test System is developed for high voltage testing applications requiring controlled partial discharge performance. The high voltage section is completely sealed within a shielded space, providing a reliable and safe structure for testing.

The overall partial discharge can be controlled within 1–3 pC at rated voltage under normal environmental conditions. The system adopts a compact design with lightweight components, reducing installation space requirements. High voltage generation can be achieved through high voltage transformer boosting and series resonance, including power-frequency and variable-frequency operation. The equipment also features an internal high voltage isolation switch, enabling one system for multiple testing arrangements.

Product Parameters

Product Advantages

1. Controlled partial discharge performance meets high voltage testing requirements.
2. Internal high voltage isolation switch enables flexible system operation.
3. Compact structure reduces the required installation space.
4. Lightweight components make equipment arrangement more convenient.

Application Scenarios

• GIS partial discharge testing
• GIS withstand testing
• High voltage insulation testing
• Electrical equipment testing
• High voltage test systems

FAQ

Q1: What makes the SXGTU suitable for partial discharge testing?
A1: The high voltage structure is sealed and shielded, with partial discharge controlled within 1–3 pC at rated voltage.

Q2: Does the system include a high voltage isolation switch?
A2: Yes, an internal high voltage isolation switch is included.

Q3: What is the structure of the voltage boosting system?
A3: All voltage boosting methods use single-stage boosting without cascade connection.

Q4: Can the capacity be customized?
A4: Yes, higher capacity levels can be customized.
