SF6 GIS High Voltage Test System for Partial Discharge and Insulation Withstand Testing Applications

Product Description

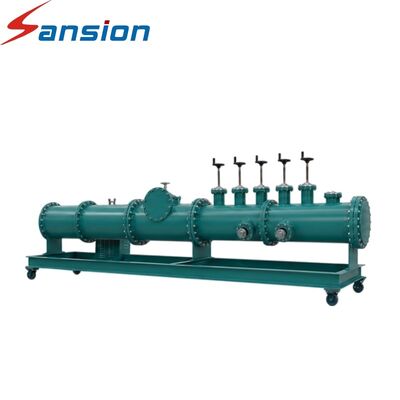

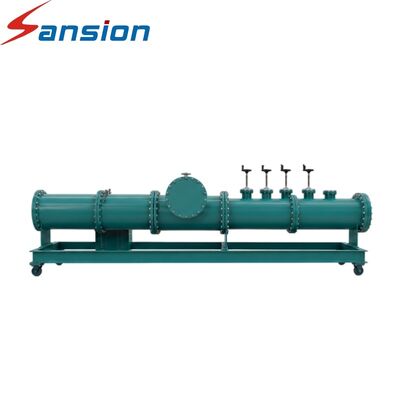

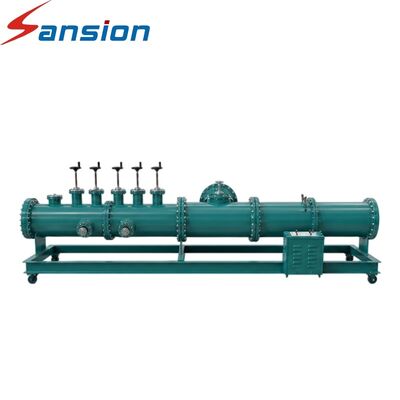

SXGTU GIS Partial Discharge AC Withstand Test System

The SXGTU GIS Partial Discharge AC Withstand Test System is designed for high voltage testing applications requiring a safe and compact structure. The high voltage components are fully sealed inside a shielded space, helping improve testing safety and reliability.

The system provides partial discharge testing and withstand testing functions, with overall partial discharge controlled within 1–3 pC at rated voltage under normal environmental conditions. It is available in multiple voltage levels and capacity ranges. The system supports high voltage transformer boosting and series resonance, including power-frequency and variable-frequency modes.

Product Parameters

Product Advantages

1. Sealed structure provides a controlled high voltage testing environment.
2. Low partial discharge performance supports reliable testing.
3. Multiple voltage levels meet different testing requirements.
4. Compact design saves installation space.

Application Scenarios

• GIS high voltage tests
• SF6 equipment tests
• Partial discharge tests
• Insulation tests
• Withstand tests

FAQ

Q1: What equipment is SXGTU used for?
A1: It is used for GIS high voltage partial discharge and withstand testing.

Q2: What high voltage generation methods are supported?
A2: High voltage transformer boosting and series resonance are supported.

Q3: What frequency modes are available?
A3: Power frequency and variable frequency modes are available.

Q4: What is the maximum voltage level?
A4: The available voltage level can reach 1000 kV.
