100kV to 1000kV GIS/GIL Gas-Insulated Transmission Line High Voltage Test System for Partial Discharge and AC Withstand Testing

Product Description

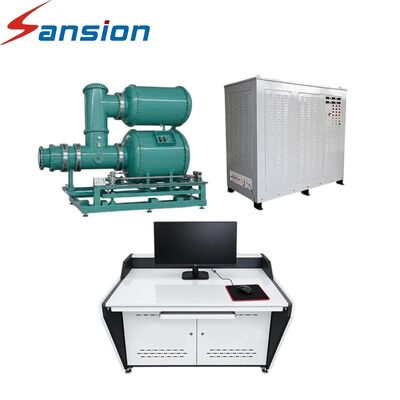

SXGTU GIS Partial Discharge Withstand Voltage Test Device

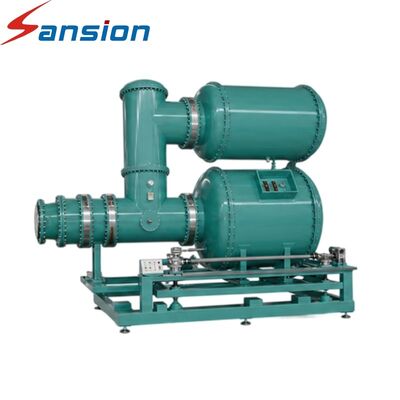

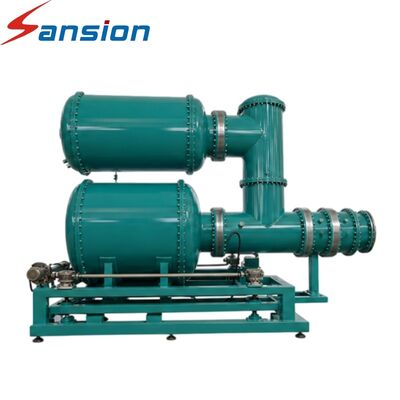

The SXGTU is a high voltage test system available in multiple voltage levels from 100 kV to 1000 kV. It is designed with a fully sealed high voltage section inside a shielded space, providing a compact structure for high voltage testing. Under rated voltage and normal environmental conditions, the overall partial discharge can be controlled within 1–3 pC.

The system covers capacity levels from 50 kVA to 2000 kVA, with higher ratings available for customization. High voltage can be generated using a high voltage transformer or series resonance, with power-frequency and variable-frequency options. All boosting methods adopt single-stage voltage boosting without cascade connection. Its compact size, lightweight components and convenient test-object connection make the system practical for high voltage test arrangements.

Product Parameters

Product Advantages

1. Multiple voltage levels from 100 kV to 1000 kV are available for different test requirements.
2. The single-stage boosting design eliminates the need for cascade voltage boosting.
3. The high voltage section is sealed and shielded within one space.
4. The system reduces installation space and supporting power capacity requirements.

Application Scenarios

• GIS high voltage tests
• Partial discharge tests
• AC withstand tests
• Insulation tests
• High voltage electrical equipment tests

FAQ

Q1: What is the maximum standard voltage level?
A1: The standard voltage levels extend up to 1000 kV.

Q2: Can a higher voltage level be provided?
A2: Yes. Higher voltage levels can be customized.

Q3: What capacity range is available?
A3: The standard capacity range is 50–2000 kVA, with higher capacities available for customization.

Q4: What is the temperature rise specification?
A4: The temperature rise is not greater than 65 K when operating at rated current for 60 minutes at 50 Hz.
