Automatic Power Transformer Test System for Comprehensive Measurement, Functional Verification and Quality Inspection of Transformers

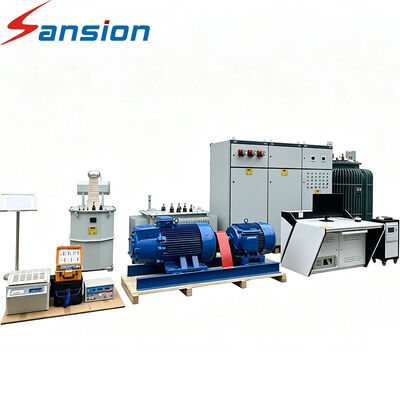

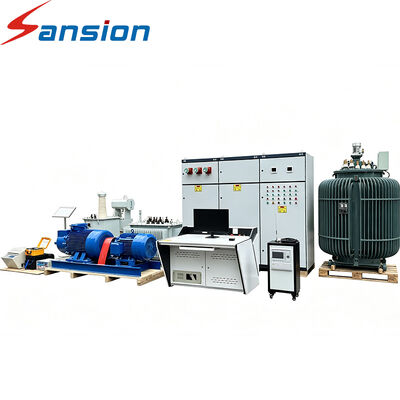

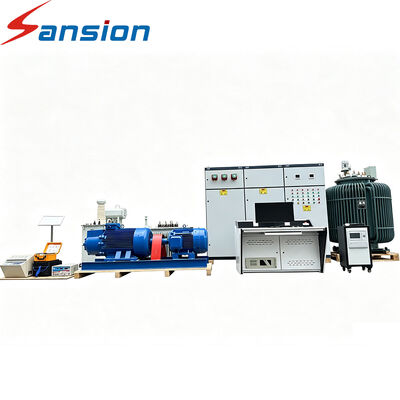

Large Image : Automatic Power Transformer Test System for Comprehensive Measurement, Functional Verification and Quality Inspection of Transformers

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

Automatic Power Transformer Test System for Comprehensive Measurement, Functional Verification and Quality Inspection of Transformers

Description

Core Feature:	Centralized Control & Intelligent Automated Testing	Safety Design:	Built-in Triple Overload Protection Circuitry
Protection Parameter:	Fault Current Isolation ≤10ms	Control Architecture:	PC Supervised Auto Measurement & Regulation
Test Functions:	DC Winding Resistance, Turns Ratio, Voltage Measurement, Current Measurement, Power Parameter Measurement	Test Application:	Transformer Shipment Acceptance & Overhaul Verification
Highlight:	Automatic transformer test system for measurement , Power transformer test system with verification , Transformer test system for quality inspection

Product Overview

The SXBZ Series Transformer Test System is designed for organizations that require reliable electrical testing capability for transformers throughout their manufacturing, inspection and maintenance activities.

Combining test power, electrical measurement, control and protection functions, the system provides a dedicated environment for carrying out multiple transformer testing tasks.

Core Testing Functions

DC Winding Resistance
Measure transformer winding resistance to support inspection of winding circuits and electrical connections.
Turns Ratio
Verify transformer turns ratio as part of transformer production and electrical inspection.
Voltage Measurement
Monitor voltage parameters during applicable testing operations.
Current Measurement
Measure current values required for relevant testing procedures.
Power Parameter Measurement
Obtain electrical power parameters during transformer testing.

Key Product Advantages

Comprehensive Testing

Supports multiple transformer electrical measurement and testing requirements.

Application-Specific Configuration

The system can be designed around the actual transformer and testing project.

Centralized Operation

Provides a common operating platform for applicable test functions.

Integrated Measurement

Combines multiple electrical measurement capabilities within the testing system.

Safety Protection

Includes three-level overload protection and fast fault-current disconnection.

Flexible Application

Suitable for transformer factories, laboratories, utilities and maintenance organizations.

Professional System Design

Combines power, measurement, control and protection into a dedicated testing solution.

Applications

Manufacturing
Support electrical inspection of newly manufactured transformers.
Factory Quality Control
Provide measurement data for routine product inspection before delivery.
Laboratory Testing
Offer a testing environment for different transformer models and electrical test requirements.
Maintenance
Support electrical testing during transformer inspection and maintenance activities.
Repair Verification
Perform applicable measurements after transformer repair or servicing.
Engineering Projects
Provide a dedicated testing system for customized transformer testing requirements.

FAQ

1. What is the SXBZ Series Transformer Test System?

The SXBZ Series is a dedicated transformer testing system combining electrical testing, measurement, power supply, control and protection functions according to the customer's requirements.

2. What is the main application of SXBZ?

It is mainly used for transformer electrical testing in manufacturing plants, testing laboratories, utilities, maintenance centers and engineering projects.

3. What tests are available?

Depending on the configuration, the system can support DC resistance, turns ratio, voltage, current, power parameter and electrical parameter measurement.

4. Can the system be configured for different transformer capacities?

Yes. The system configuration is determined according to the transformer capacity, voltage level, required test conditions and other project parameters.

5. Can SXBZ test both oil-immersed and dry-type transformers?

Yes, the system can be configured for different transformer types. The applicable testing functions depend on the specific transformer and project requirements.
