Integrated Transformer Performance Testing System for Power Supply Companies, Transformer Manufacturers and Professional Repair Centers

Product Introduction

The SXBZ Series Transformer Test System provides a configurable testing platform for these requirements, combining test power, measurement, control and protection functions in a coordinated system. Instead of selecting a separate device for every testing task, users can develop an SXBZ configuration around the transformer specifications and actual testing requirements.

Technical Overview

Application

1. Transformer Manufacturers
   Support routine electrical inspection during transformer production and final quality checks.
2. Testing Laboratories
   Provide a configurable platform for different transformer testing requirements.
3. Power Utilities
   Support transformer inspection and maintenance-related testing according to the configured functions.
4. Transformer Repair Centers
   Provide electrical testing capabilities before and after maintenance work.
5. Engineering & R&D Teams
   Support electrical parameter measurement and testing for transformer development projects.

FAQ

1. What is the SXBZ Series Transformer Test System?
   The SXBZ Series is a configurable transformer testing system designed to combine electrical measurement, test power, control and protection functions for transformer inspection and testing.
2. What transformer tests can SXBZ perform?
   Depending on the selected configuration, the system can perform or support DC resistance, turns ratio, voltage, current, power parameter and other electrical parameter measurements.
3. Can SXBZ test both power and distribution transformers?
   Yes. The system can be configured for different transformer types, including power transformers and distribution transformers. The applicable test range depends on the specific project configuration.
4. Is the SXBZ system customizable?
   Yes. The configuration can be developed according to transformer capacity, voltage level, transformer type, required test items, site conditions and automation requirements.
5. What equipment is included in an SXBZ system?

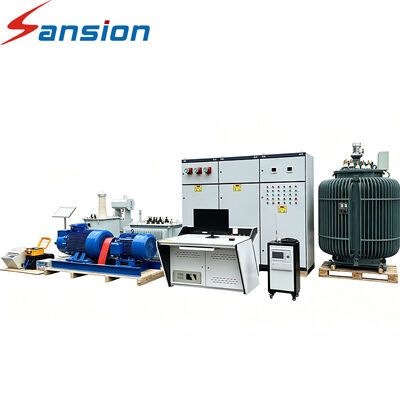

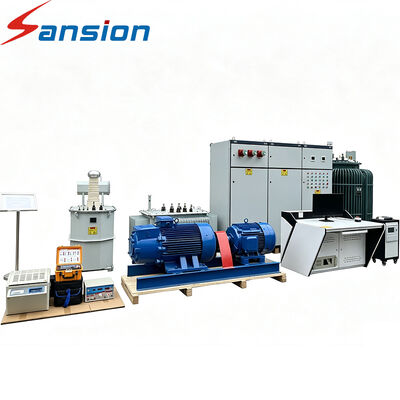

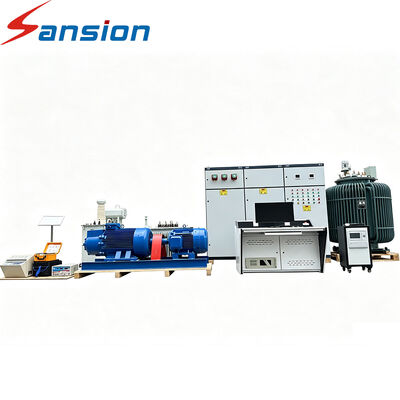

   A typical system may include a central control console, transformer measurement cabinet, comprehensive instrument cabinet, voltage regulator, intermediate transformer, test transformer, generator motor set and distribution/protection cabinet.
