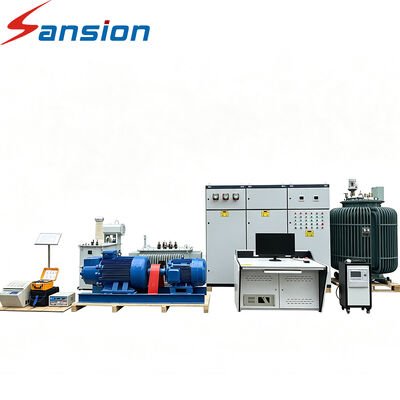

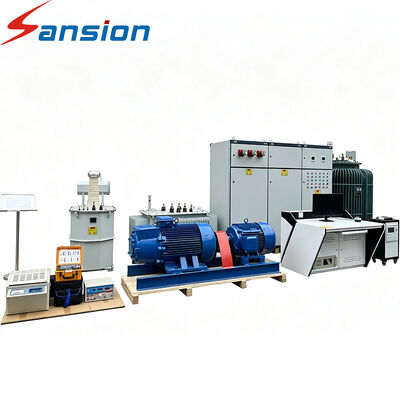

Advanced Transformer Test System with Computerized Measurement and Control for Power Transformer Factory Testing and Maintenance

General Information

The SXBZ Series Transformer Test System is designed to bring these requirements into a coordinated testing environment, helping users simplify equipment management while maintaining the flexibility needed for different transformer applications.

From routine electrical inspection to more comprehensive testing requirements, SXBZ can be configured around the transformer under test, required test items and site conditions.

System Components

• Central Control Console
  Provides centralized operation and system control.
• Transformer Measurement Cabinet
  Handles transformer-related electrical measurement and signal acquisition.
• Comprehensive Instrument Cabinet
  Integrates additional measurement and testing functions.
• Voltage Regulator
  Provides adjustable voltage for applicable testing procedures.
• Intermediate Transformer
  Adapts voltage or current according to system requirements.
• Test Transformer
  Provides the required high-voltage test output.
• Generator Motor Set
  Can be included when an independent test power source is required.
• Distribution & Protection Cabinet
  Provides power distribution and protection functions.

Key Advantages

1. Flexible Configuration
   The system can be designed around different transformer specifications and testing requirements.
2. Multiple Test Functions
   Supports a range of electrical measurements and testing operations.
3. Centralized Operation
   Provides a common control environment for applicable testing functions.
4. Integrated Protection
   Protection functions are incorporated into the overall system architecture.
5. Organized Test Data
   Supports test result recording and documentation.
6. Wide Application
   Suitable for manufacturing, laboratory, utility, maintenance and customized applications.

FAQ

1. What is the SXBZ Transformer Test System?
   The SXBZ Series is a configurable transformer testing system that combines testing power, measurement, control and protection functions for electrical testing of transformers.
2. What tests can the SXBZ Series perform?
   Depending on the configuration, the system can support DC resistance, turns ratio, voltage, current, power parameter and other electrical parameter measurements.
3. Can SXBZ be customized?
   Yes. The system can be configured according to transformer type, capacity, voltage level, required test items, site conditions and automation requirements.
4. What transformers can be tested?
   The system can be configured for power transformers, distribution transformers, oil-immersed transformers, dry-type transformers and customized transformer products.
5. Is SXBZ suitable for transformer factories?
   Yes. It can be used for transformer production inspection, routine electrical testing and quality-control applications.
