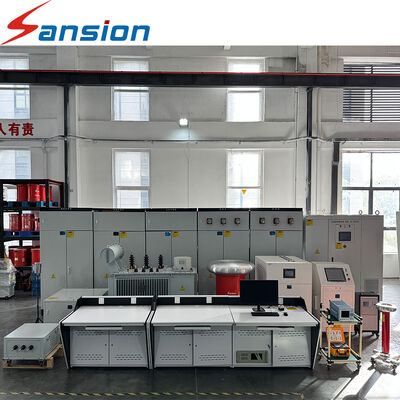

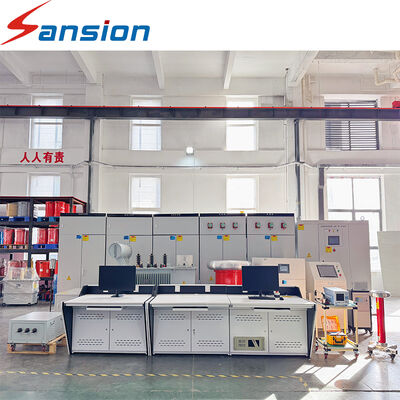

High Efficiency Transformer Comprehensive Test System for Factory Production Testing, Routine Inspection and Transformer Repair Applications

Product Introduction

The SXBZ Series Transformer Factory Test System is designed for transformer manufacturers that require a structured and reliable environment for routine electrical inspection. It combines testing power, measurement instruments, control functions and protection equipment into a dedicated transformer testing system, helping manufacturers organize testing procedures from initial setup to final test records.

Main Testing Capabilities

• Winding Resistance
  Measure DC resistance of transformer windings for winding and connection inspection.
• Turns Ratio
  Verify transformer turns ratio and support production quality checks.
• Voltage & Current
  Monitor electrical values during transformer testing.
• Power Measurement
  Measure relevant electrical power parameters during testing.
• Electrical Parameter Acquisition
  Collect electrical test information for analysis and documentation.
• Computerized Testing
  Operate and manage testing procedures through a centralized control system.
• Test Result Recording
  Keep test data for inspection, documentation and quality management.

Key Features

1. Factory-Oriented Design
   Developed around transformer production and routine electrical inspection.
2. Configurable Testing Functions
   Testing functions can be selected according to actual requirements.
3. Centralized Operation
   Major testing operations can be managed through one control platform.
4. Integrated Measurement
   Multiple electrical parameters can be measured within the system.
5. Production Quality Support
   Suitable for standardized transformer inspection and test documentation.
6. Multi-Level Protection
   Protection functions are incorporated into the testing system.
7. Flexible Application
   Suitable for manufacturing, laboratory, maintenance and customized projects.

Technical Overview

FAQ

1. What is the SXBZ Transformer Factory Test System used for?
The SXBZ Series is designed for electrical testing and quality inspection of transformers. It can be used in transformer manufacturing plants, testing laboratories, maintenance facilities and other electrical testing environments.

2. What types of transformers can be tested?
The system can be configured for different transformer applications, including power transformers, distribution transformers, oil-immersed transformers and dry-type transformers. The applicable test range depends on the transformer specifications and final system configuration.

3. What tests can the SXBZ Series perform?
Depending on the selected configuration, the system can support DC resistance, turns ratio, voltage and current measurement, power parameter measurement and other electrical parameter tests.
Additional testing functions can be considered according to the customer's requirements.

4. Can the SXBZ system be customized?
Yes. SXBZ is a configurable transformer testing system. The system can be designed according to the customer's transformer capacity, voltage level, transformer type, required test items, production volume and site conditions.

5. Can the system be used for transformer factory testing?
Yes. The SXBZ Series is particularly suitable for routine production inspection and transformer factory testing, where repeatable testing procedures and organized test records are required.
