Automatic Transformer Test System for Comprehensive Inspection and Performance Verification During Transformer Production and Maintenance

General Information

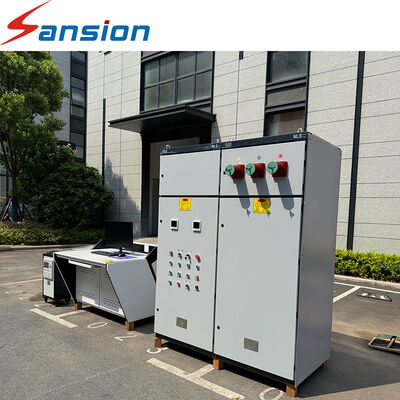

The SXBZ Series Transformer Comprehensive Test System is a configurable testing solution developed for professional transformer testing environments. It provides the necessary infrastructure for electrical power supply, voltage regulation, measurement, transformer testing, control, protection, and test-data acquisition.

Core Testing Capabilities

• Winding DC Resistance
  Measure transformer winding resistance to support production inspection, maintenance, and electrical condition assessment.
• Transformer Turns Ratio
  Verify winding ratio during transformer testing and inspection.
• Voltage & Current Measurement
  Monitor important electrical parameters throughout the testing process.
• Power Parameter Measurement
  Measure relevant power parameters according to the selected test configuration.
• Electrical Data Acquisition
  Acquire measurement signals and testing data from the configured system.
• Computerized Test Control
  A computerized control platform can be provided for system operation, parameter setting, monitoring, and test management.
• Test Data Recording
  Testing results can be collected and recorded for documentation and subsequent analysis.

Application

1. Transformer Manufacturing
   Provide electrical testing capabilities for transformer production and inspection.
2. Transformer Testing Laboratories
   Support laboratories requiring multiple transformer measurement and testing functions.
3. Power Utility Maintenance
   Provide testing capabilities for transformer inspection and maintenance applications.
4. Transformer Service Centers
   Support electrical testing during transformer repair and technical evaluation.
5. Electrical Equipment Manufacturers
   Develop dedicated testing capabilities for transformer-related products.
6. R&D and Engineering
   Provide a flexible platform for electrical performance testing and product development.

Technical Overview

FAQ

Q1:What is the SXBZ Series?

The SXBZ Series is a configurable comprehensive testing system for electrical testing of transformers.

Q2:What tests can the system perform?

Depending on the configuration, it can include DC resistance, turns ratio, voltage, current, power, electrical parameter measurement, data acquisition, and other required testing functions.

Q3:Can the system be customized?

Yes. The system is configured according to transformer specifications and customer testing requirements.

Q4:Can it be used for both manufacturing and maintenance?

Yes. The system can be configured for transformer production, inspection, maintenance, laboratory, and engineering applications.

Q5:Is the control system computerized?

Computerized and centralized control can be configured according to the project requirements.
