Fully Integrated Transformer Test System for Automated Electrical Performance Testing of Power and Distribution Transformers

Product Introduction

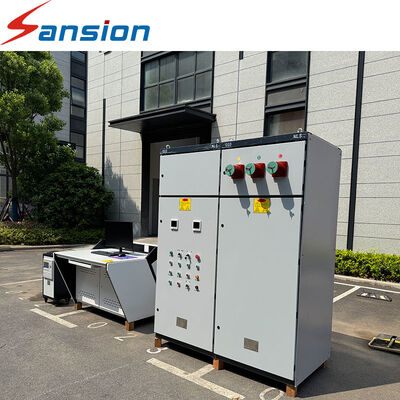

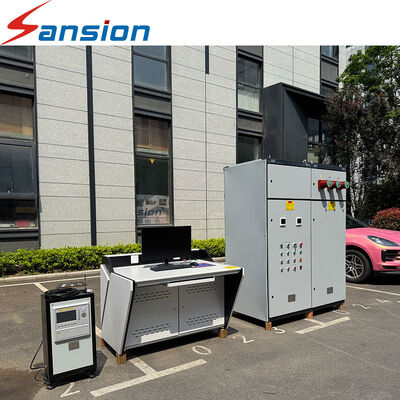

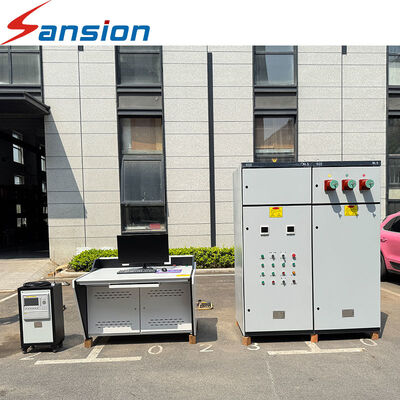

The SXBZ Series Transformer Test System is a configurable electrical testing solution developed for transformer manufacturers, power equipment companies, testing centers, and transformer service facilities.

Rather than supplying a single testing instrument, the SXBZ Series is engineered as a project-based testing system, combining the required power source, test equipment, measurement units, control equipment, and protection devices according to the customer's transformer testing requirements.

From a compact testing setup to a large-scale transformer testing facility, the system can be configured around the actual application.

Testing Functions

• DC Resistance Test
  Used for measuring transformer winding resistance during manufacturing inspection, maintenance, and other electrical testing applications.
• Turns Ratio Test
  Used to verify the transformation ratio between transformer windings.
• Voltage Measurement
  Provides measurement of test voltage and relevant electrical parameters.
• Current Measurement
  Measures current during the configured testing procedure.
• Power Measurement
  Provides electrical power parameter measurement where required.
• Electrical Parameter Acquisition
  Collects relevant measurement information during testing.
• Computerized Testing
  A computerized control system can be configured for centralized operation and monitoring.
• Test Data Recording
  Testing information can be collected and recorded according to the final system configuration.

Application

1. Transformer Production Facility
   Configure the required testing functions for routine production and factory inspection.
2. Transformer Testing Center
   Develop a broader testing configuration for multiple transformer types and testing requirements.
3. Transformer Maintenance Facility
   Select appropriate electrical testing functions for transformer inspection and maintenance.
4. Electrical Equipment Manufacturer
   Develop a dedicated test system for specific transformer product lines.
5. New Laboratory Project
   Plan the testing system together with the laboratory's power supply, equipment arrangement, control, and protection requirements.
