Intelligent Transformer Comprehensive Test System for Automated Testing of Power Transformers in Manufacturing and Maintenance Facilities

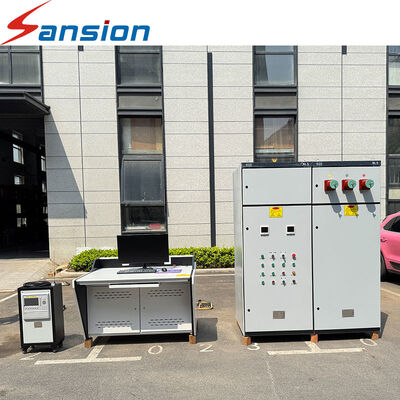

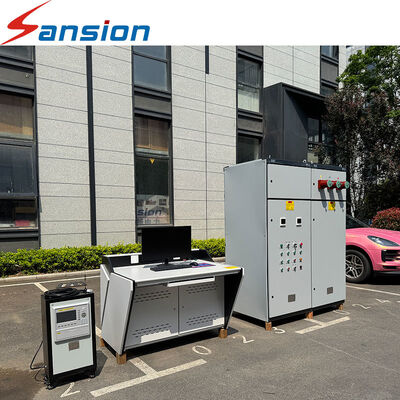

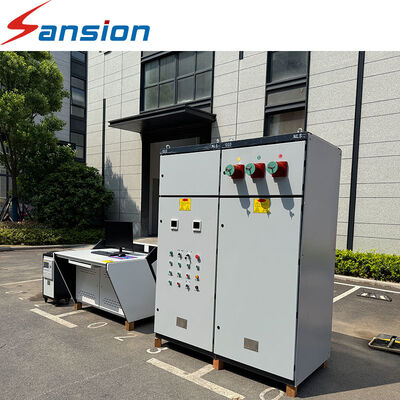

Large Image : Intelligent Transformer Comprehensive Test System for Automated Testing of Power Transformers in Manufacturing and Maintenance Facilities

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

Intelligent Transformer Comprehensive Test System for Automated Testing of Power Transformers in Manufacturing and Maintenance Facilities

Description

Protection Mechanism:	Built-in 3-stage Overload Protection	Fault Response Speed:	Cut Off Fault Current Within 10ms
Control Mode:	Fully Automatic Computer Measurement & Control	DC Resistance Measurement:	Yes
Turns Ratio Testing:	Yes	Power Parameter Measurement:	Yes
Highlight:	Intelligent Transformer Test System , Automated Transformer Testing System , Power Transformer Maintenance Test System

Product Description

The SXBZ Series Transformer Comprehensive Test System is designed to help manufacturers establish a reliable testing environment for transformer production, inspection, maintenance, and laboratory applications.

The system combines configurable testing and measurement functions with controlled power supply, protection, data acquisition, and computerized operation.

Testing Capability

DC resistance measurement
Turns ratio testing
Voltage measurement
Current measurement
Power parameter measurement
Electrical parameter acquisition
Test data recording
Computerized test control
Protection and fault handling

Application

Transformer Manufacturing Plants

For production testing and quality inspection.

Power Equipment Manufacturers

For electrical testing of transformer products.

Power Utilities

For transformer maintenance and inspection.

Transformer Service Centers

For maintenance and troubleshooting applications.

Testing Laboratories

For comprehensive transformer testing.

R&D Facilities

For product development and electrical performance evaluation.

FAQ

Q:What is the main purpose of the SXBZ Series?

It is a comprehensive transformer testing system designed to support electrical testing, measurement, control, protection, and data acquisition.

Q:Is it mainly for transformer manufacturers?

Transformer factories are one of its main applications, but the system can also be used in laboratories, maintenance facilities, utilities, and electrical equipment companies.

Q:What tests can be included?

Depending on the configuration, functions can include DC resistance, turns ratio, voltage, current, power measurement, and other electrical testing functions.

Q:Can I configure only the tests required by my factory?

Yes. The system is configured according to the customer's transformer products and testing requirements.
