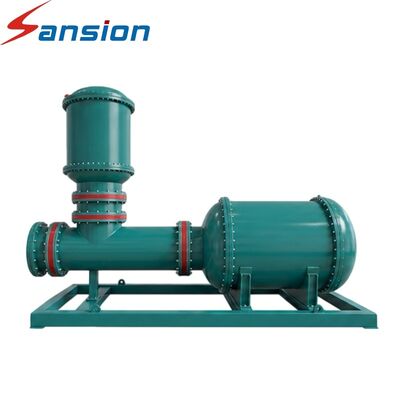

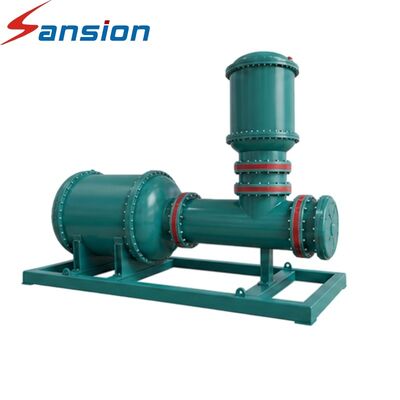

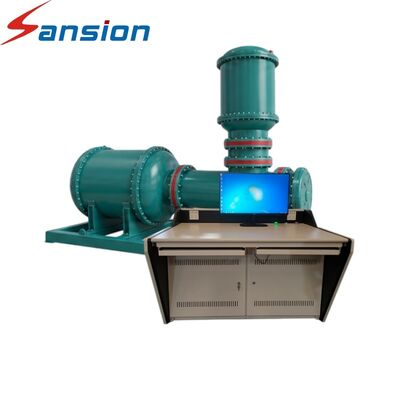

GIS Partial Discharge and AC Withstand Test System for High Voltage Electrical Equipment PD Testing

Large Image : GIS Partial Discharge and AC Withstand Test System for High Voltage Electrical Equipment PD Testing

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXGTU

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

GIS Partial Discharge and AC Withstand Test System for High Voltage Electrical Equipment PD Testing

Description

Test Function:	AC Withstand Voltage And Partial Discharge Testing	Applicable Equipment:	GIS And High Voltage Electrical Equipment
PD Measurement:	High Sensitivity Partial Discharge Detection	Waveform Measurement:	Test Voltage Waveform Monitoring
Measurement Verification:	High Accuracy System Verification	System Type:	Integrated AC Hipot Test System
Testing Capability:	Power Frequency AC Testing	Application Scope:	Factory Inspection And Laboratory Testing
Highlight:	GIS partial discharge test system , AC withstand test equipment , high voltage PD testing system

Product Description

SXGTU AC Hipot Test System

This test system is designed for power frequency AC withstand voltage and partial discharge testing of GIS and high voltage electrical equipment. It is suitable for post insulators, wall bushings, current transformers, voltage transformers, circuit breakers, disconnectors, safety tools and insulating materials.

The system combines high voltage insulation testing with partial discharge measurement to support equipment quality inspection and electrical performance evaluation. It can also be used for waveform distortion measurement and measurement accuracy verification, providing a practical testing solution for manufacturers and high voltage laboratories.

Product Parameters

Parameter	Specification
Test Function	AC Withstand Voltage and Partial Discharge Testing
Applicable Equipment	GIS and High Voltage Electrical Equipment
PD Measurement	High Sensitivity Partial Discharge Detection
Waveform Measurement	Test Voltage Waveform Monitoring
Measurement Verification	High Accuracy System Verification

Product Advantages

The integrated system supports both withstand voltage and partial discharge testing.
It is suitable for a wide range of GIS and high voltage electrical equipment.
High sensitivity PD measurement helps evaluate insulation performance more effectively.
Multiple measurement functions support factory inspection and laboratory testing.

Application Scenarios

GIS manufacturing and inspection
High voltage equipment factories
Electrical testing laboratories
Substation equipment testing
Insulation performance evaluation
Power equipment quality control

FAQ

Q1: What equipment can be tested with this system?
A1: It can be used for GIS, bushings, CTs, VTs, circuit breakers, disconnectors, post insulators and other applicable insulation products.

Q2: What are the main testing functions?
A2: The main functions include power frequency AC withstand testing and partial discharge measurement.

Q3: Can the system be used for factory inspection?
A3: Yes. It is suitable for production testing, quality inspection and laboratory applications.

Q4: Can the configuration be customized?
A4: The system configuration can be designed according to the customer's test object and required voltage level.
