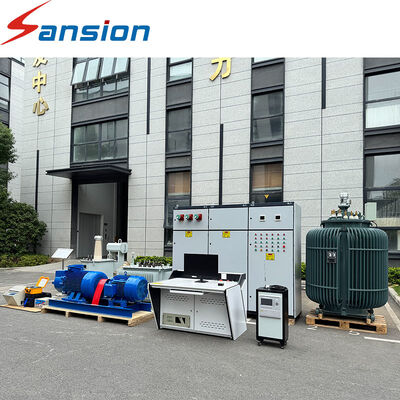

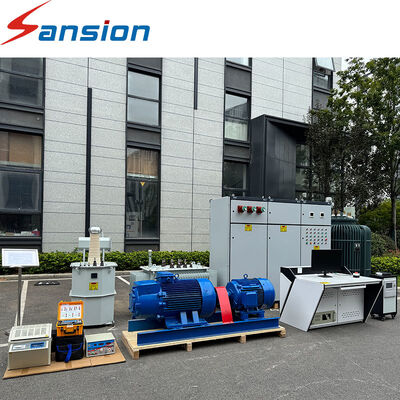

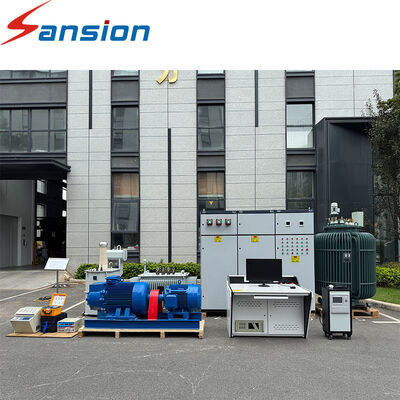

Comprehensive Power Transformer Testing System with Automatic Test Control for Transformer Production, Inspection and Maintenance

The SXBZ Series Transformer Comprehensive Test System is designed to provide a centralized testing environment for transformer manufacturers and electrical testing facilities. It combines the necessary test power, voltage regulation, measurement, control, protection, and data acquisition functions into a purpose-built transformer testing system.

Typical Functions

• Voltage Measurement
  Monitor test voltage and relevant electrical parameters.
• Current Measurement
  Measure current during the testing process.
• Power Measurement
  Monitor electrical power parameters where required.
• DC Resistance Testing
  Measure transformer winding resistance for manufacturing inspection and maintenance applications.
• Turns Ratio Testing
  Verify transformer winding ratio according to the configured test requirements.
• Data Acquisition
  Collect testing data for analysis and record keeping.
• Computerized Control
  Provide centralized operation of the configured testing equipment.
• Protection System
  Integrate overload and fault protection into the overall test system.

Technical Specifications

FAQ

Q:What is the SXBZ Series used for?

It is a comprehensive testing system designed for electrical testing of transformers in factories, laboratories, maintenance facilities, and related applications.

Q:Can the system perform several transformer tests?

Yes. Different testing functions can be incorporated into one system according to the customer's requirements.

Q:Is the system suitable for transformer manufacturers?

Yes. The SXBZ Series is designed particularly for environments where transformer testing is performed repeatedly.

Q:Can the system be customized?

Yes. The system can be configured according to transformer specifications, required tests, factory conditions, and automation requirements.
