Intelligent Transformer Test System for Integrated Testing, Measurement and Control of Power Transformers in Manufacturing and Repair Facilities

Large Image : Intelligent Transformer Test System for Integrated Testing, Measurement and Control of Power Transformers in Manufacturing and Repair Facilities

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	T/T,L/C

Contact Now Chat Now

Intelligent Transformer Test System for Integrated Testing, Measurement and Control of Power Transformers in Manufacturing and Repair Facilities

Description

Test Scope:	Full Electrical Inspection For Power Transformers	Control Solution:	Intelligent Automatic PC Measurement & Control
Safety Protection:	3-level Overload Safeguard, 10ms Rapid Fault Current Breaking	Fault Current Disconnection:	≤10 Ms
System Design:	Modular	Control:	Centralized / Computerized
Highlight:	Intelligent transformer test system , Transformer test system for manufacturing , Power transformer measurement and control

Product Description

The SXBZ Series Transformer Testing System is developed for transformer manufacturers, electrical equipment companies, testing laboratories, and maintenance organizations requiring a reliable setup for comprehensive transformer testing.

By combining testing power, voltage regulation, electrical measurement, control, protection, and data acquisition into a coordinated system, SXBZ helps transform individual testing procedures into a more structured and manageable testing solution.

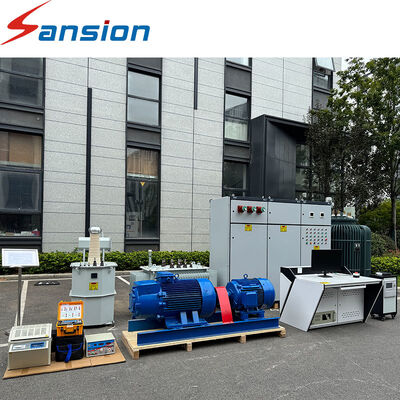

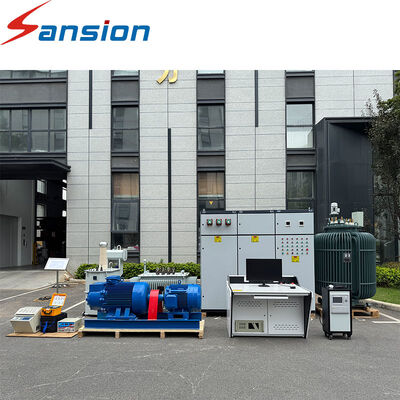

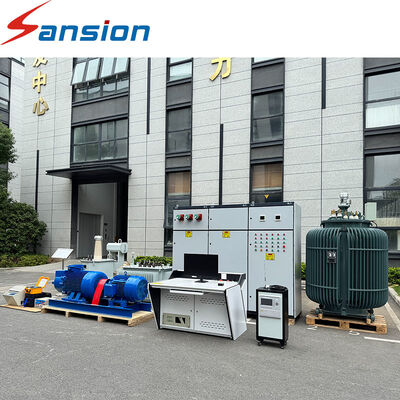

Typical System Components

Central control console
Transformer comprehensive measurement cabinet
Comprehensive instrument cabinet
Voltage regulator
Intermediate transformer
Test transformer
Generator motor set
Distribution and control cabinet
Measurement and protection equipment
Data acquisition and control system

Technical Overview

Parameter	SXBZ Series
Product Type	Transformer Comprehensive Testing System
Application	Transformer Testing
Control	Centralized / Computerized
System Design	Modular
Voltage Measurement	Configurable
Current Measurement	Configurable
Power Measurement	Configurable
DC Resistance	Configurable
Turns Ratio	Configurable
Data Acquisition	Configurable
Protection	Three-Level Overload Protection
Fault Current Disconnection	≤10 ms
Installation	Factory / Laboratory / Maintenance Facility
Custom Design	Available

FAQ

Q:Is SXBZ suitable for transformer factories?

Yes. The system is designed for comprehensive transformer testing and is suitable for transformer production and inspection environments.

Q:Can different test functions be combined?

Yes. The system can be configured with different testing modules according to the customer's requirements.

Q:Can I select only the tests I need?

Yes. The final system configuration can be based on the required test items.

Q:Can the system be customized?

Yes. System configuration can be adjusted according to transformer capacity, voltage level, test requirements, factory layout, and other project conditions.

Q:Does SXBZ support computerized control?

Computerized and centralized control can be configured according to the required system design.
