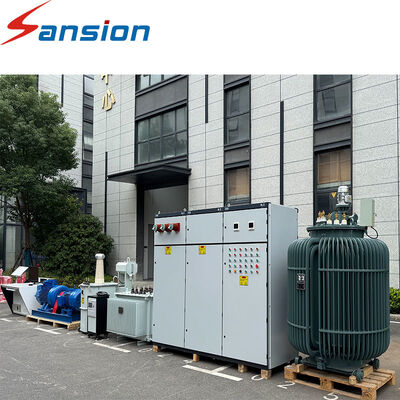

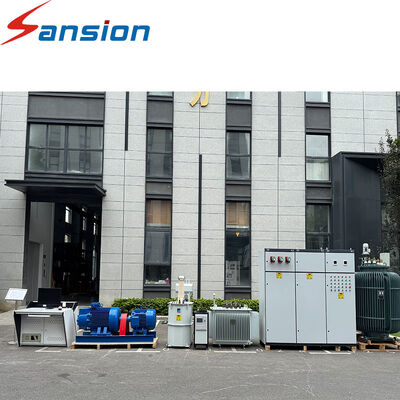

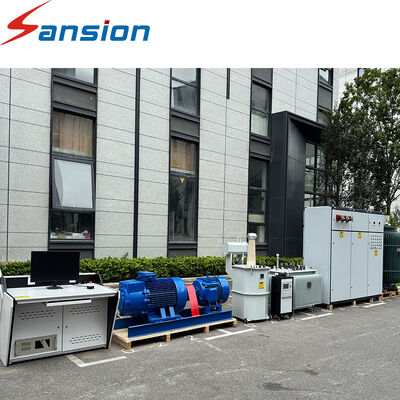

Fully Automatic Transformer Comprehensive Test System for Transformer Manufacturers, Power Supply Companies and Maintenance Centers

Product Description

The SXBZ Series Transformer Comprehensive Testing Solution is designed for transformer manufacturers, electrical testing laboratories, maintenance facilities, and power equipment companies that need a coordinated approach to transformer testing. Instead of operating multiple independent instruments for different procedures, the system brings power supply, voltage regulation, measurement, control, protection, and data acquisition into a coordinated testing workflow.

Key Function

• Comprehensive Electrical Measurement

  The system can integrate voltage, current, power, and other electrical measurement functions required for transformer testing. This provides a centralized way to monitor important testing parameters during operation.

• Transformer DC Resistance Testing

  The system can be configured with DC resistance testing functions for transformer winding resistance measurement. It is suitable for routine inspection, manufacturing tests, maintenance, and troubleshooting applications.

• Turns Ratio Measurement

  Turns ratio testing can be incorporated into the system configuration to support transformer winding ratio verification.

• Centralized Test Control

  Testing operations can be managed through a centralized control interface, helping operators reduce unnecessary switching between different instruments.

• Test Data Acquisition

  Measurement data can be collected and stored according to the configured testing requirements. This is particularly useful for transformer manufacturers handling repeated testing procedures.

Technical Overview

Typical Applications

• Power transformer manufacturers
• Distribution transformer manufacturers
• Dry-type transformer manufacturers
• Transformer repair workshops
• Power utilities
• Electrical equipment manufacturers
• High-voltage testing laboratories
• Transformer inspection centers
• R&D and engineering laboratories

FAQ

1. What transformers can be tested with the SXBZ system?

   The system can be configured for different power and distribution transformer applications, including oil-immersed and dry-type transformers.

2. Is the SXBZ a standard product?

   The SXBZ is a configurable comprehensive testing system. The final configuration depends on the customer's transformer specifications and required test items.

3. Can existing testing equipment be integrated?

   The system configuration can be discussed according to the customer's existing equipment and testing requirements.

4. Can the testing process be automated?

   Centralized and computerized control can be configured according to the required level of automation.

5. Can test data be recorded?

   Yes. Data acquisition and test-result recording functions can be incorporated into the system.
