Transformer Comprehensive Test System for Automatic Factory Testing and Maintenance of Power Transformers

Product Description

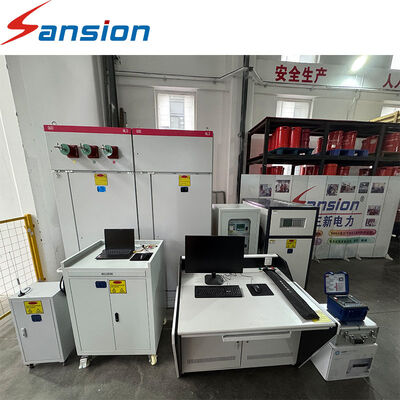

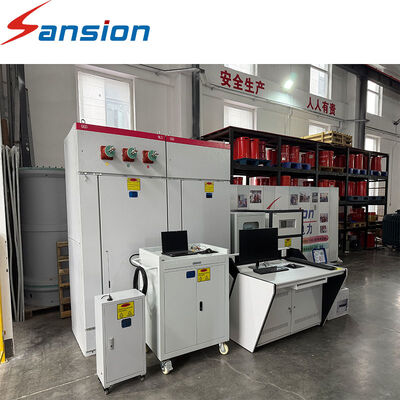

SXBZ Series Comprehensive Transformer Test System is an integrated and intelligent testing solution designed for comprehensive testing of various types of transformers during manufacturing, commissioning, maintenance, and repair.

The system integrates multiple testing and control units into one complete platform, enabling automatic measurement, control, data acquisition, and test management. It is widely used in transformer manufacturing plants, transformer repair centers, power utilities, and electrical equipment testing facilities.

Key Features

• Fully Automatic & Intelligent Testing
  The system uses computer-based automatic measurement and control technology to integrate multiple testing functions into one intelligent control platform, reducing manual operation and improving testing efficiency.

• Integrated Multi-Function Testing
  Multiple transformer testing functions can be integrated into a single system, including voltage/current measurement, power parameter analysis, DC resistance testing, turns ratio testing, and other configured test functions.

• High Safety Protection
  The system is equipped with a multi-level overload protection mechanism. In the event of abnormal conditions, the protection system can quickly disconnect the fault current within 10 ms, helping improve operator and equipment safety.

• Centralized Control
  All major testing units are connected to the central control system. Test parameters, measurement results, and operating status can be monitored and managed through the computer-based control platform.

• Modular System Design
  The system consists of multiple functional units that can be configured according to the transformer type, rated capacity, voltage level, and customer's testing requirements.

• Suitable for Factory & Maintenance Testing
  It can be used for transformer production testing as well as inspection, commissioning, maintenance, and repair applications.

Testing Functions

• Transformer voltage and current measurement
• Transformer power parameter measurement
• Transformer DC resistance testing
• Transformer turns ratio testing
• Transformer electrical parameter analysis
• Test voltage/current acquisition
• Automated test control
• Test data acquisition and management
• Comprehensive transformer test procedures

Applications

1. Transformer Manufacturing Plants
   For routine and comprehensive testing during transformer production and final inspection.

2. Transformer Repair Centers
   For inspection and electrical performance testing during transformer maintenance and repair.

3. Power Utilities
   For transformer commissioning, maintenance, condition inspection, and troubleshooting support.

4. Electrical Equipment Manufacturers
   For integrated testing of transformers and related electrical equipment.

5. Testing Laboratories
   For comprehensive transformer testing and electrical performance evaluation.
