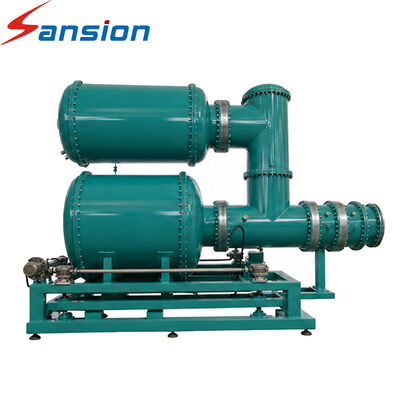

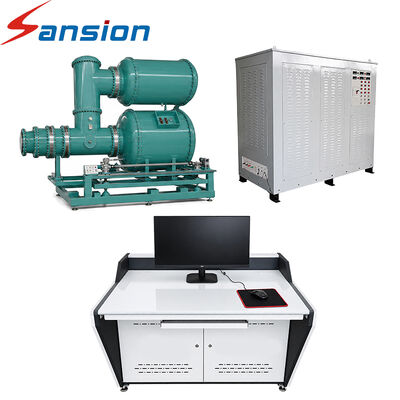

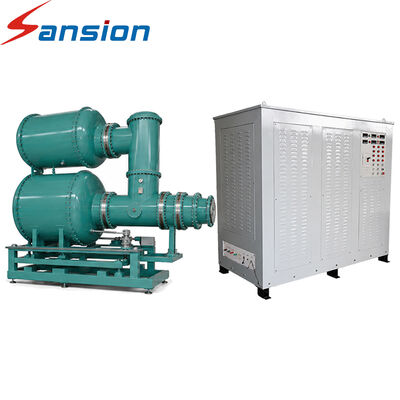

GIS GIL High Voltage Test System for AC Withstand Voltage and Partial Discharge Testing, Complete GIS Commissioning and Factory Testing Equipment

Large Image : GIS GIL High Voltage Test System for AC Withstand Voltage and Partial Discharge Testing, Complete GIS Commissioning and Factory Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXGTU

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 working days
Payment Terms:	L/C,T/T

Contact Now Chat Now

GIS GIL High Voltage Test System for AC Withstand Voltage and Partial Discharge Testing, Complete GIS Commissioning and Factory Testing Equipment

Description

Capacity Range:	50–2000kVA	Frequency:	50Hz/60Hz
System Type:	Resonance Voltage Generation	Cooling Method:	Air Cooling
Input Voltage:	0.35–10kV	Power Consumption:	500W
Highlight:	GIS AC withstand voltage test system , high voltage partial discharge testing equipment , GIS factory testing equipment with warranty

Product Description

The GIS GIL High Voltage Test System provides an integrated solution for electrical insulation testing of GIS and GIL systems.

It can be used throughout the equipment lifecycle, from factory inspection to site commissioning and post-maintenance verification.

Test Functions

AC withstand voltage
Partial discharge
Insulation withstand
PD inception measurement
PD extinction measurement
High-voltage measurement
Digital data recording
Automatic test control
Test report generation

Complete GIS Testing Solution

For a large GIS project, the complete testing package may include:

AC Resonant Test System
Partial Discharge Measurement System
Circuit Breaker Analyzer
Contact Resistance Tester
SF6 Gas Analyzer
SF6 Dew Point Meter
SF6 Leak Detector
Density Relay Tester

A comprehensive GIS testing workflow can cover electrical, mechanical, gas and insulation checks rather than relying on a single instrument.

Customer Pain Point

“We need one supplier for the entire GIS testing project."

A complete solution provider can help coordinate the AC withstand, PD, measurement, control and related commissioning equipment.

FAQ

Q: Is this only for GIS manufacturers?

A: No. It can also be used by utilities, EPC contractors, testing laboratories and substation commissioning companies.

Q: Can it be used for GIL?

A: Yes, provided the system is configured according to the GIL voltage, capacitance and test requirements.
