GIS AC Resonant Test System for Partial Discharge and Withstand Voltage Testing, Variable Frequency High Voltage Test Equipment for GIS GIL and EHV Switchgear

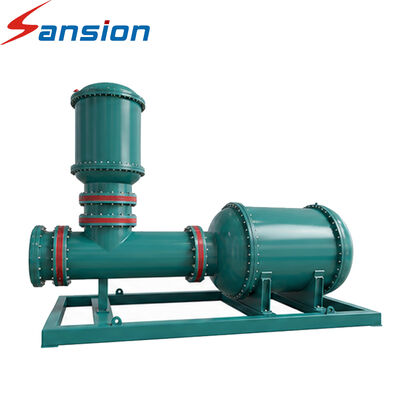

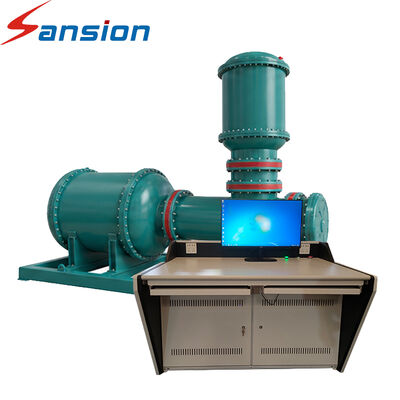

Large Image : GIS AC Resonant Test System for Partial Discharge and Withstand Voltage Testing, Variable Frequency High Voltage Test Equipment for GIS GIL and EHV Switchgear

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXGTU

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 working days
Payment Terms:	L/C,T/T

Contact Now Chat Now

GIS AC Resonant Test System for Partial Discharge and Withstand Voltage Testing, Variable Frequency High Voltage Test Equipment for GIS GIL and EHV Switchgear

Description

Capacity Range:	50–2000kVA	Frequency:	50Hz/60Hz
System Type:	Resonance Voltage Generation	Input Voltage:	0.35–10kV
Cooling Method:	Air Cooling	Power Consumption:	500W
Highlight:	GIS AC resonant test system , variable frequency high voltage test equipment , EHV switchgear withstand voltage testing

Product Description

The GIS AC Resonant Test System is engineered for high-voltage AC testing of large-capacitance GIS and GIL systems.

The variable-frequency resonant technology is particularly suitable for high-capacitance test objects and can be configured for factory and on-site testing.

Testing Functions

GIS AC withstand test
GIS partial discharge test
GIL AC withstand test
Insulation withstand verification
Variable-frequency resonance
High-voltage measurement
PD detection
Automatic voltage regulation
Test timing
Data recording

Application

Factory Type Testing

For GIS manufacturers performing product development and type tests.

Routine Factory Testing

For production-line or factory acceptance testing.

Site Commissioning

For newly installed GIS substations.

Maintenance Testing

For GIS equipment following major maintenance.

HIGHVOLT, for example, describes variable-frequency AC test systems for GIS routine/type testing, PD measurement and on-site testing, including direct connection to the GIS test object.

FAQ

Q: Can the system be directly connected to GIS?

A: The connection configuration depends on the GIS design and project requirements. Direct flange connection is possible for appropriately designed systems.

Q: What parameters are needed for system selection?

A: GIS rated voltage, test voltage, capacitance, test duration, required frequency range and applicable standard are key parameters.
