Power Transformer Test System and Comprehensive Transformer Test Equipment for Power Transformer Ratio, Resistance, Loss, Impedance, Insulation and Dielectric Withstand Tests

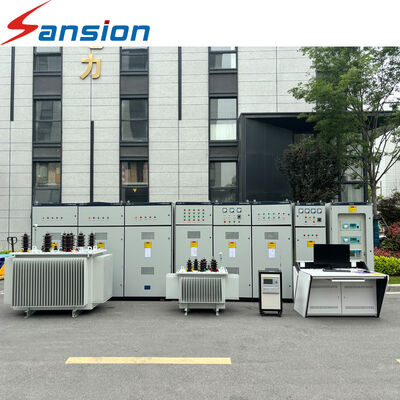

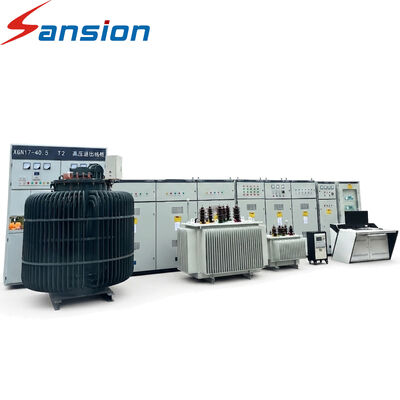

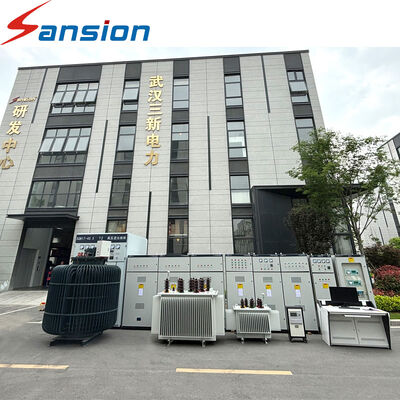

Large Image : Power Transformer Test System and Comprehensive Transformer Test Equipment for Power Transformer Ratio, Resistance, Loss, Impedance, Insulation and Dielectric Withstand Tests

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Power Transformer Test System and Comprehensive Transformer Test Equipment for Power Transformer Ratio, Resistance, Loss, Impedance, Insulation and Dielectric Withstand Tests

Description

Testing Efficiency:	Improved	Operation Procedures:	Simplified
System Configuration:	Flexible	Testing Process:	Optimized
Testing Functions:	Customizable	Voltage Levels:	Adjustable
Highlight:	Power Transformer Test System with warranty , Transformer Ratio Test Equipment , Comprehensive Transformer Insulation Test

Product Description

The Power Transformer Test System is designed for comprehensive evaluation of transformer electrical characteristics and insulation performance.

It can combine routine measurements with optional dielectric and special tests according to transformer type and project requirements.

Key Test Items

Voltage ratio
Vector group
DC winding resistance
No-load loss
No-load current
Load loss
Short-circuit impedance
Insulation resistance
AC withstand voltage
Induced voltage withstand
Capacitance
Tan delta
Partial discharge
Temperature rise

Some comprehensive systems also support impulse testing and special transformer tests depending on configuration.

Applications

Power transformers
Distribution transformers
Special transformers
Transformer manufacturing
Transformer laboratories
Utility acceptance testing

Buyer Pain Point

A transformer may pass a single electrical measurement while another characteristic is outside the expected range. Comprehensive testing provides multiple measurements to evaluate different aspects of transformer performance rather than relying on one test alone.

Power Transformer Test System and Comprehensive Transformer Test Equipment for Power Transformer Ratio, Resistance, Loss, Impedance, Insulation and Dielectric Withstand Tests
