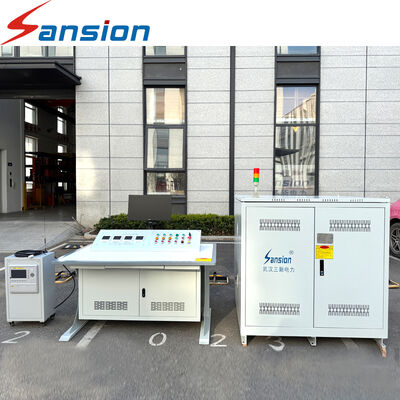

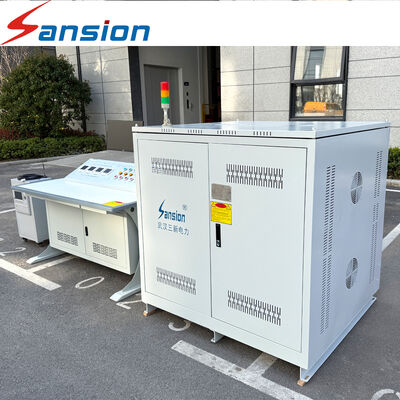

1000A 3000A 5000A 6300A High Current Temperature Rise Test Equipment Three Phase Heat Run Test System for Switchgear, Busbar, Circuit Breaker and Transformer Testing

The High Current Temperature Rise Test Equipment is designed for laboratories and manufacturers that require high-current loading and accurate temperature monitoring.

The system can be configured with different current capacities according to the customer's test object and required test current.

Typical commercial systems cover current levels ranging from approximately 1000A to several thousand amperes, while larger systems can reach 6300A and beyond.

Switchgear

Evaluate temperature rise at busbar connections, terminals, contacts and conductive components.

Circuit Breakers

Verify thermal performance under specified current conditions.

Busbars

Evaluate temperature distribution and heating performance at different current levels.

Transformers

Perform applicable heat-run and thermal performance tests.

Electrical Connections

Identify abnormal heating caused by excessive contact resistance or poor connections.

• Three-phase high-current output
• Adjustable output current
• Temperature rise measurement
• Multi-point temperature acquisition
• Current monitoring
• Temperature curve recording
• Automatic current control
• Test timing
• Data storage
• Report generation

Q: Can the current rating be customized?

A: Yes. The high-current output should be selected according to the test current, equipment rating and test-object requirements.

Q: Can the system provide three-phase current?

A: Three-phase configurations are available for applications such as switchgear, busbars and other three-phase electrical equipment.

Q: Can different temperature channels be configured?

A: Yes. Multi-channel configurations are available. Current commercial systems offer configurations ranging from dozens of channels to much larger channel counts.
