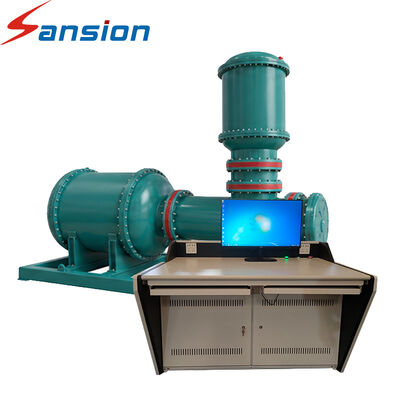

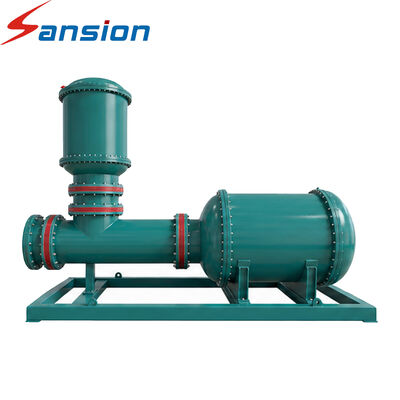

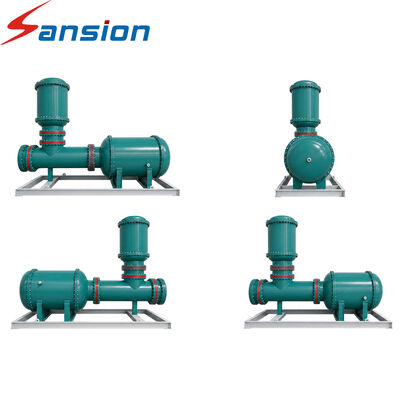

Portable and On-Site GIS High Voltage Testing System with Partial Discharge Measurement – Compact GIS AC Resonance Test Equipment

For on-site GIS testing, transportation and installation efficiency can be just as important as electrical performance.

The Portable GIS High Voltage Testing System is designed around the requirements of field engineers who need to transport high-voltage testing equipment to substations and complete commissioning or diagnostic tests efficiently.

Compact resonance test systems are already used for on-site GIS applications, with manufacturers emphasizing modular construction and transportability.

• Compact modular structure
• High-voltage AC test output
• Variable-frequency resonance technology
• GIS withstand voltage testing
• Partial discharge measurement
• On-site commissioning
• Remote control operation
• Safety interlock
• Digital measurement
• Automatic data recording
• Test report generation

Easy transportation

Modular components can be transported between substations more conveniently.

Faster setup

A well-integrated control and test architecture can reduce field wiring and setup time.

Reduced site workload

Integrated voltage measurement, control and PD monitoring simplify the testing process.

Suitable for challenging environments

The equipment can be engineered according to indoor/outdoor installation requirements and local site conditions.
