3 Phase High Current Temperature Rise Test System for Switchgear and Busbar – Automatic Primary Current Injection and Thermal Performance Test Equipment

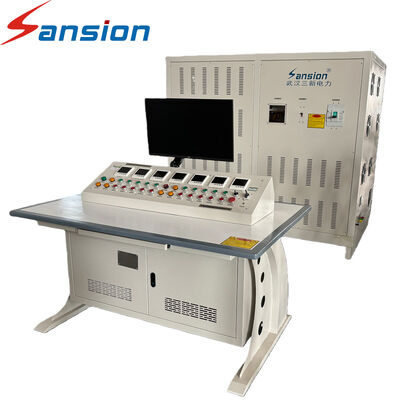

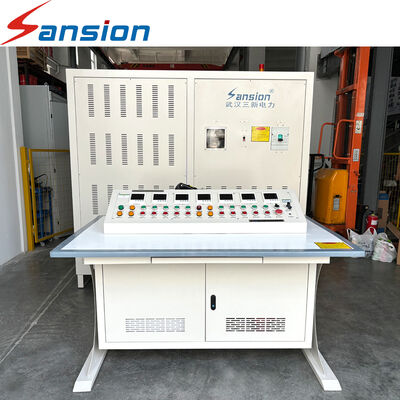

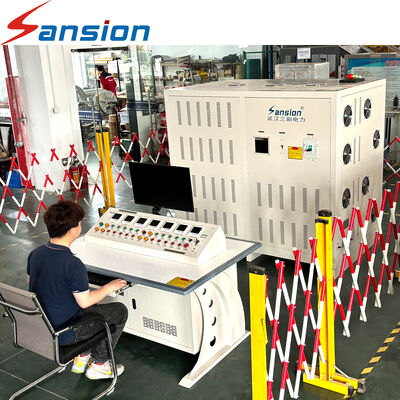

Large Image : 3 Phase High Current Temperature Rise Test System for Switchgear and Busbar – Automatic Primary Current Injection and Thermal Performance Test Equipment

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXWA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

3 Phase High Current Temperature Rise Test System for Switchgear and Busbar – Automatic Primary Current Injection and Thermal Performance Test Equipment

Description

Current Booster Output:	0.5KA To 15KA	Control Mode:	Digital Automatic Control
Current Capacity:	6300A High Current Output	Maximum Output Current:	6300A
Waveform Distortion:	THD ≤1%	Output Power:	0~20kVA AC/DC
Highlight:	3 phase temperature rise test system , high current switchgear test equipment , automatic primary current injection system

The 3 Phase High Current Temperature Rise Test System is designed for three-phase thermal testing of electrical equipment.

The system provides synchronized three-phase current output and temperature acquisition for evaluating the thermal performance of three-phase switchgear, busbars and other electrical assemblies.

Main Testing Functions

Three-phase high-current injection
Three-phase temperature rise test
Busbar heat-run test
Switchgear temperature rise test
Circuit breaker thermal test
Contact temperature measurement
Continuous current loading
Thermal stability evaluation
Multi-point temperature acquisition

Main Features

Three-phase synchronized output
Adjustable current
Automatic current regulation
Multiple temperature channels
Real-time temperature curves
Programmable test duration
Automatic shutdown
Data recording
Report generation

A current industry example describes three-phase switchgear temperature-rise systems in configurations such as 3*3000A, 3*5000A and 3*6300A, with higher-current configurations also available.

FAQ

Why use three-phase temperature rise testing?

Three-phase testing can reproduce the operating conditions of three-phase electrical equipment and allow engineers to evaluate thermal behavior across phases.

Can the three phases be controlled independently?

The control architecture can be customized according to the test requirements.

Can busbar and switchgear be tested together?

Yes, if the system capacity and test configuration are suitable for the complete test object.
