Automatic High Current Temperature Rise Test Equipment – 5000A 6300A 8000A 10000A Primary Current Injection Test System for Electrical Equipment

Large Image : Automatic High Current Temperature Rise Test Equipment – 5000A 6300A 8000A 10000A Primary Current Injection Test System for Electrical Equipment

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXWA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Automatic High Current Temperature Rise Test Equipment – 5000A 6300A 8000A 10000A Primary Current Injection Test System for Electrical Equipment

Description

Current Capacity:	6300A High Current Output	Power Supply:	Three-phase AC Power
Current Output Mode:	Three-phase AC High Current Output	Measurement:	Multi-channel Temperature Monitoring
Maximum Output Current:	6300A	Test Function:	Temperature Rise Testing
Highlight:	Automatic temperature rise test equipment , High current primary injection test system , Electrical equipment testing with warranty

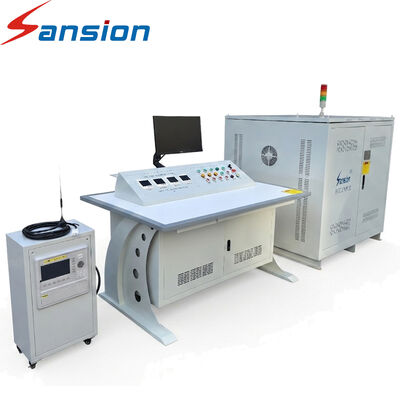

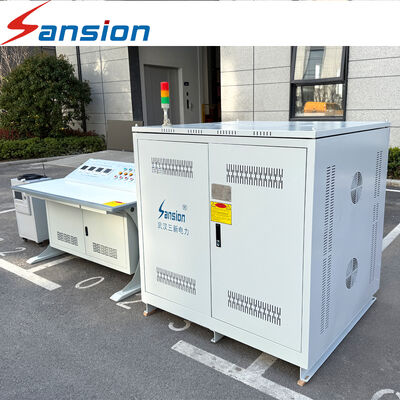

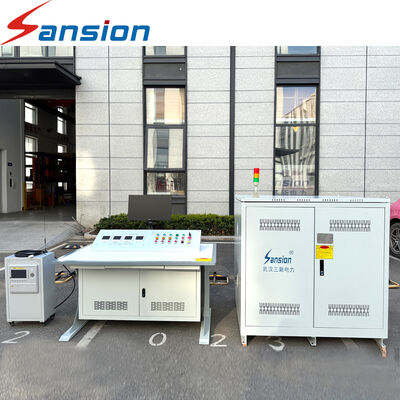

The Automatic High Current Temperature Rise Test Equipment is a programmable primary current injection system developed for large-current thermal testing.

It provides adjustable high AC current for continuous temperature rise testing and can be configured with multiple temperature sensors to monitor the thermal behavior of the test sample in real time.

The system is suitable for electrical manufacturers, power utilities, laboratories and research institutes.

Testing Functions

5000A temperature rise test
6300A temperature rise test
8000A high-current test
10000A high-current testing
Primary current injection
Heat run test
Long-duration current loading
Temperature rise measurement
Multi-channel temperature acquisition
Thermal stability evaluation

Advantages

Large Current Output

The system can be customized for different current levels.

Automatic Control

Current ramp-up, test duration and temperature monitoring can be controlled by software.

Real-Time Monitoring

Current, temperature and test time can be displayed simultaneously.

Safety Protection

The system can include overcurrent, overtemperature, phase-loss and emergency protection.

Data Management

Test curves and measurement results can be recorded and exported.

FAQ

Can you provide 10000A or higher?

Yes. The output capacity can be customized according to the test requirements.

Is the output current AC or DC?

The system configuration can be designed according to the customer's test requirements. High-current temperature-rise systems for switchgear applications commonly use AC primary-current injection.

Can I choose different current capacities?

Yes. The final specification should be selected according to the rated current, test current, impedance and test duration of the sample.
